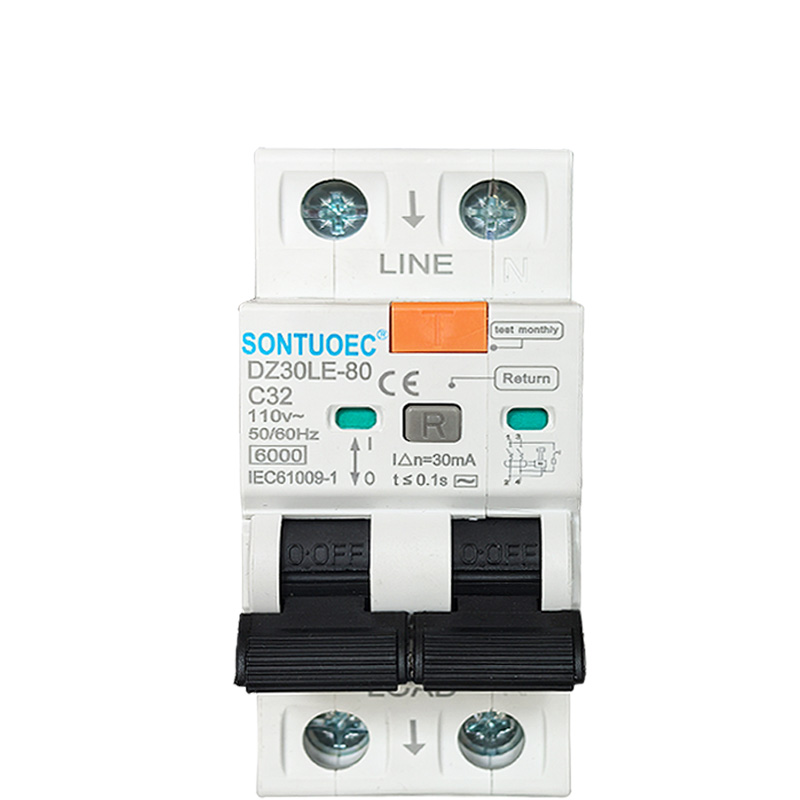

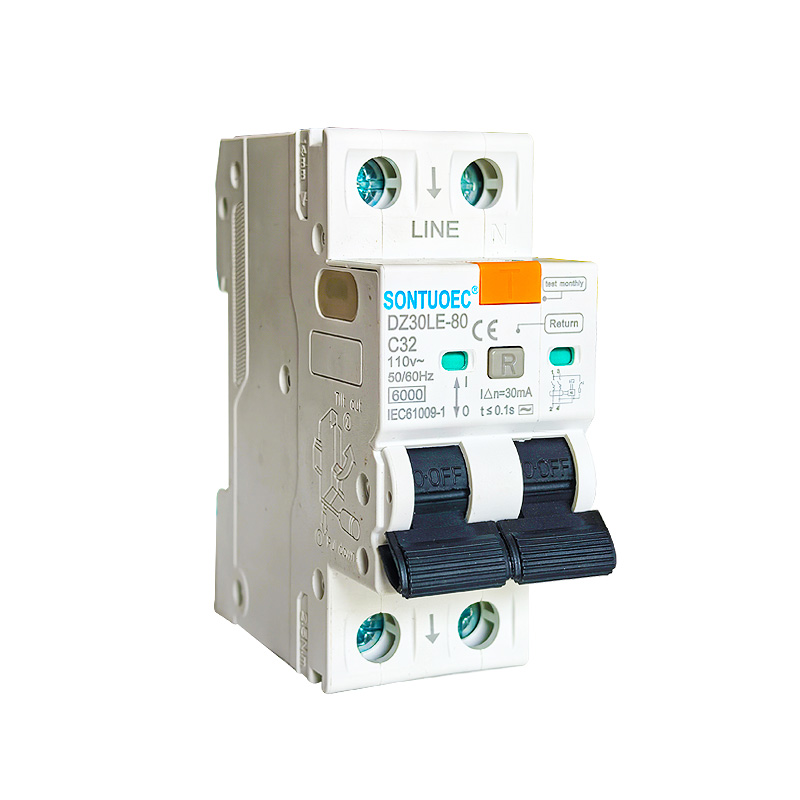

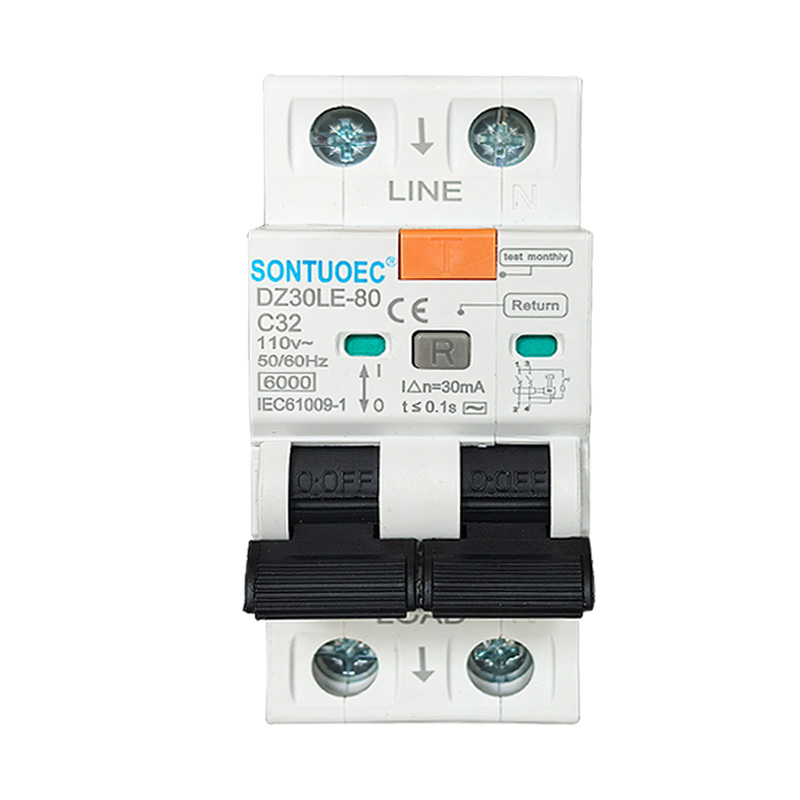

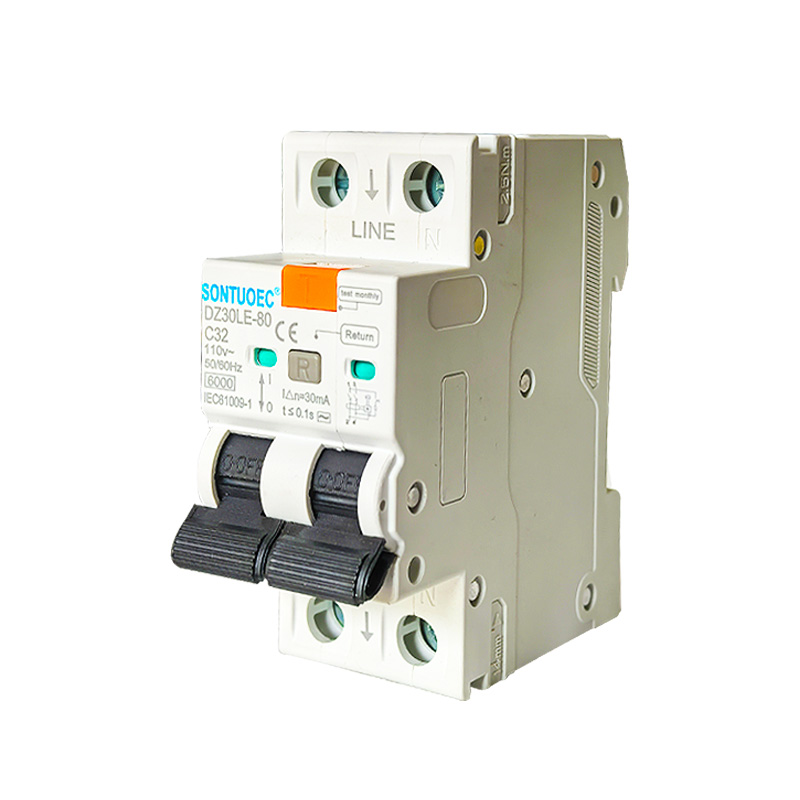

2p Laakage Prince Circaket Breaker 6ka IEC61009.1Sandsardard mhando rcbo

Zvinyorwa:

Sandard			IEC / En61009-1
Magetsi Zvimiro	Type (Wedzera fomu yePasi Pasi Peakage Sensed)		Electro-magineti mhando, mhando yemagetsi
	Yakatarwa zvazvino mukati	A	Ac
	Matanda	P	2,4
	Rated Voltage	V	Ac 240/415
	YAKADZIDZWA Yazvino:		6A, 10,16,00,00,20,38A
	Rated sensitivity i △ n	A	0.01,0.03,0.1,0.3,0.5
	Insulation Voltage UI	V	500
	Rakarambidzwa kugara kwenguva refu uye Kupwanya kugona ini △ m	A	630
	Pfupi-redunhu razvino i △ c	A	6000
	SCPD fuse	A	6000
	Rated Frequency	HZ	50/60
	Degree degree		2
Michina Zvimiro	Hupenyu hwakajeka	t	4000
	HUMEDZA Hupenyu	t	10000
	Dziviriro		IP20
	Ambient tembiricha (ine mazuva ese avhareji ≤35ºc)	ºc	-25 ~ + 40
	Kupisa tembiricha	ºc	-25 ~ + 70
Kuisirwa	Terminal yekubatanidza mhando		Cable / U-Type Busbar / Pin-Type Busbar
	Terminal size yepamusoro / pasi yetambo	mm2	25
		AWG	18-3
	Terminal size yepamusoro / pasi yebhasibar	mm2	25
		AWG	18-3
	Kusimbisa torque	N*m	2.5
		Mu-lbs	22
	Kukwira		Pane din njanji en 60715 (35mm) nenzira yekukurumidza clip mudziyo
	Kubatana		Kubva kumusoro uye pasi

2P Laakage Prince Circaked breaker 6ka Iec61009.1Simbisa mhando rcbo iripo mabasa makuru makuru seinotevera

Kuwedzeredza Kudzivirirwa: Kana iyo yazvino mudunhu inodarika kukosha kweiyo Dz0le-80 rcbo, ichaita zvinongoerekana angobvisa dunhu mukati menguva yakatarwa yekudzivirira dunhu nemidziyo kubva mukutsanya moto uye nekukuvara.

Pfupi dzimba dzedunhu: Kana dunhu pfupi rikangoitika mudunhu, iyo DZ.LE-80 RCbo ichakurumidza kugura dunhu kudzivirira redunhu pfupi kubva pakukonzera kudunhu kwakakomba kudunhu nemidziyo.

Dziviriro yekudzivirirwa: Iyo DZ30LE-80 inokwanisa kuona yakasara yazvino (i.e., leage zvazvino) mudunhu. Kana iyo yakasara yazvino inopfuura chikumbaridzo chakasungirirwa, iyo Dz0le-80 rcbo ichagura dunhu munguva pfupi pfupi yenguva yekudzivirira tsaona dzeMagetsi uye nemoto yemagetsi.

Chigadzirwa pamusoro pekuona:

1. Ipa Dziviriro Pamusoro Penyika Kukanganisa / Kubvarura Zvazvino uye Basa Rezvazviparadzaniswa

2. Yakakwira-pfupi-Circument zvazvino zvinodzivisa kugona

3. Inoshanda kune terminal uye PIN / Fork Type busbar kubatana

4. Kushongedzwa nemunwe yakachengetedzwa macomputer terminals

5. Zvinosimudza otomatiki dunhu apo Pasi Kukanganisa / Kubvaruka Zvazvino Kunoitika uye Kupfuura iyo Yakatemerwa SentiTivity

6. Zvakazvimirira zvekupa simba uye mutsara voltage, uye wakasununguka kubva mukukanganiswa kwekunze, kushandurwa kwevanyimi.

FAQ

Q 1. Ndeipi nguva yekubhadhara?

A. Isu tinobvuma TT, 30% dhipoziti uye 70% chiyero ageisnt kopi yebl

Q 2. Nguva yekutumira iri sei?

A. Kazhinji zvinotora anenge mazuva makumi maviri nemashanu ekugadzira

Q 3. Ndiudze chiyero chekero?

A. Kazhinji makatuni, asiwo tinogona kurongedza maererano nezvaunoda.

Q 4.Chuwa iwe unobvuma kushandisa yedu logo?

A.IK iwe une huwandu hwakanaka, izere hapana dambudziko rekuita OEM.

Q5. Ndingatore mamwe masampula here?

A: Ehe, isu tinotsigira kutora samples usati waisa marongero. Ingonzwa wakasununguka kusangana nesu kana uine chero zvaunoda.

Q6. Iwe uri wepakutanga fekitori here?

A: Ehe, isu tine fekitori yedu.

Q7. Ungaita sei kuti uve nechokwadi chekuti mhando yezvigadzirwa?

A: Isu tinenge tichiwirirana nemhando dzemhando dzepasi rese kuti dziongorore chinhu chose tisati tasiya fekitari yedu.
