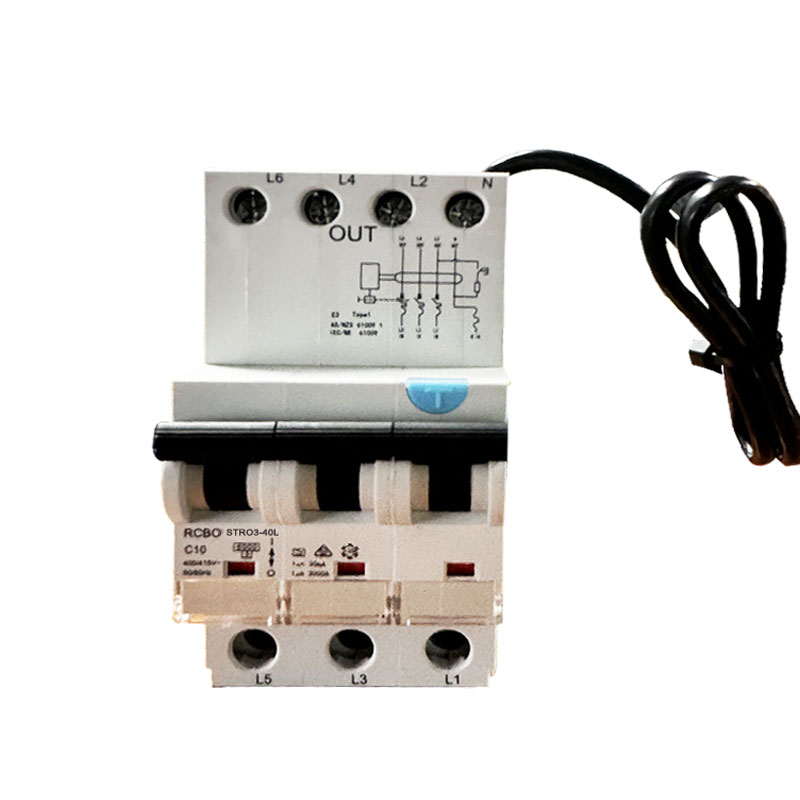

6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO ine Cable

SONTUOEC ndeimwe yevatengesi/vagadziri vekuChina vane hunyanzvi mukugadzirwa kwemidziyo midiki yakasiyana-siyana yemagetsi 6ka 3P+N Leakage Circuit Breaker a (AC) Type RCBO ine Cable inonyanya kushandiswa mu AC 50Hz(60Hz), yakayereswa voltage 110/220V, 0 yakaderera voltage 4, 16A yakaderera / 2 dhizaini. system. RCBO STRO3-40L yakaenzana neMCB + RCD basa; Inoshandiswa kudzivirira kuvhundutsa kwemagetsi uye kudzivirira kubatwa kwevanhu zvisina kunanga, kudzivirira kwemidziyo yemagetsi kana muviri wemunhu unobata magetsi kana magetsi network inodonha inodarika kukosha kwakatarwa, uye pamusoro pemutoro uye pfupi dunhu kudzivirira.

Model:STRO3-40L

Send Inquiry

Product Description

Technical data:

Sandard

IEC/EN61009-1

Magetsi zvinhu

Type(wave chimiro chekudonha kwepasi kwakanzwika)

Electro-magnetic type

Rated current In

A,AC

Poles

(1P+N)

Rated voltage

110/220,120V

Rated Current :

6,10,16,20,25,32,40A

Rated sensitivity I△n

0.01,0.03,0.1

Insulation voltage Ui

500

Rated residual kugadzira uye

500

kutyora simba I△m

Short-circuit current I△c

6000

SCPD fuse

6000, 10000A

BitmapBitmapBitmapBitmap

Rated frequency

50/60

Dhigirii rekusvibisa

Mechanical features

Zvemagetsi hupenyu

4000

Mechanical hupenyu

4000

Dhigirii rekudzivirira

IP20

Ambient tembiricha

ºC

-5 ~+40(Chishandiso chakakosha ndapota tarisa kune kururamisa tembiricha muripo)

(neavhareji yezuva nezuva ≤35ºC)

Kuchengetedza tembiricha

ºC

-25~+70

Installation

Terminal mhando yekubatanidza

Cable/U-mhando busbar/pini-mhando bhasikoro

Terminal size kumusoro/pasi kwetambo

mm²

AWG

18-5

Terminal size kumusoro/pasi kwe busbar

mm²

AWG

18-5

Kuomesa torque

N^*m

In-lbs

Mounting

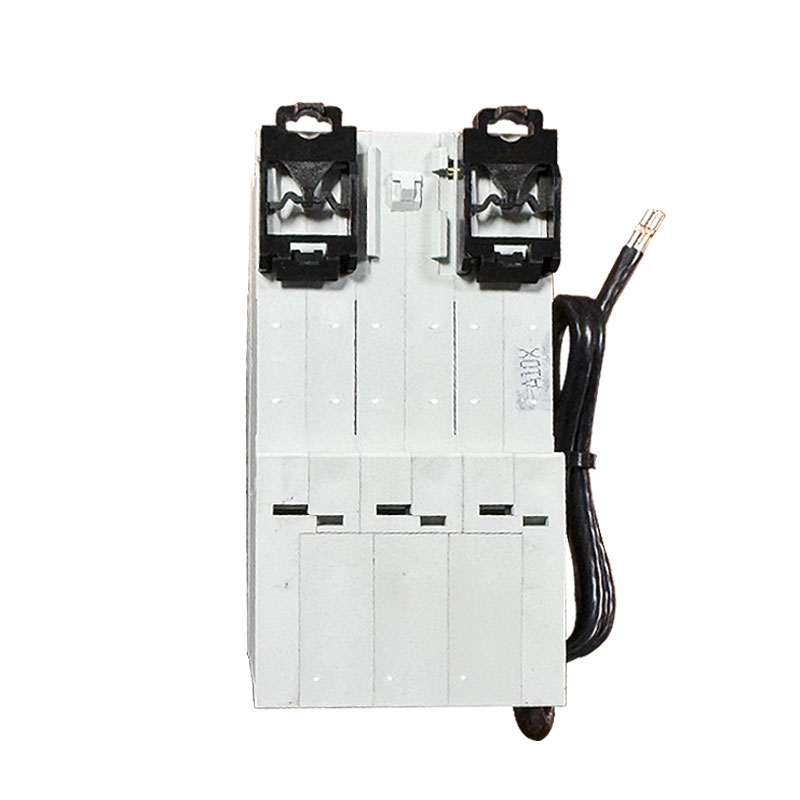

On DIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo

Connection

Kubva kumusoro uye pasi

Main Features uye Mabasa

Residual current protection: Kana iyo yakasara yazvino (kureva, kuvuza ikozvino) mudunhu inosvika pakukosha kwekutanga, RCBO inokwanisa kuita nekukurumidza kugura dunhu, nekudaro kudzivirira tsaona dzemagetsi nemoto wemagetsi.

Kudzivirirwa kwekudzivirira: Kana ikozvino munharaunda inodarika iyo yakarongerwa ikozvino yeRCBO, inokwanisa kugura dunhu mukati menguva yakatarwa, nokudaro kudzivirira kukanganisa kudunhu kana njodzi dzemoto dzinokonzerwa nekuremerwa.

Dziviriro yepfupi-yedunhu: Kana ipfupi-sekiti ikaitika mudunhu, RCBO inogona kuita nekukurumidza kugura iyo pfupi-yedunhu ikozvino uye kuchengetedza kuchengetedzwa kwedunhu nemidziyo.

B-mhando yekuburitsa maitiro: Sezvataurwa pamusoro apa, B-mhando RCBOs inonyanya kukodzera kune mitoro isinganzwisisike nekuremerwa nekukasira, asi inonzwira tsitsi kune kurebesa kwenguva refu.

Application Scenarios

6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO ine Cable inoshandiswa zvakanyanya munzvimbo dzinodiwa mabasa akasiyana-siyana ekudzivirira dunhu, kunyanya aya maseketi anoshandisa mitoro ine zvinodiwa zvakanyanya pakuremedza maitiro. Muenzaniso:

Zvivakwa zvekugara uye zvekutengesa: zvinoshandiswa kuchengetedza maseketi ekuvhenekesa, socket circuits, nezvimwewo kuve nechokwadi chekuchengetedzwa kwemunhu uye kuchengetedzwa kwemidziyo.

Nzvimbo dzeindasitiri: yekudzivirira akasiyana maindasitiri emidziyo, senge mapikisi ekupisa, mwenje incandescent, nezvimwe, kudzivirira kukuvara kwemidziyo kana tsaona dzemoto dzinokonzerwa nekuremerwa kana kuvuza.

Zvekurima uye horticulture: inoshandiswa kuchengetedza midziyo yekurima senge magreenhouse, masisitimu ekudiridza, nezvimwewo, kuve nechokwadi chekushanda kwakajairika kwemidziyo uye kuchengetedzeka kwevashandi.

Kuchengetedza uye Kuchengetedza

Sarudzo chaiyo yeyakayerwa ikozvino: Pakusarudza 6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO ine Cable , yakayerwa kukosha kwazvino kunofanirwa kusarudzwa zvichienderana neyakayerwa ikozvino uye maitiro emutoro.

Periodic Inspection and Maintenance: Nguva nenguva ongorora uye chengetedza RCBO kuona kuti inoshanda zvakavimbika, ine waya yakachengeteka, uye haina kukuvara kana ngura.

Dzivisa kushanda kwenhema: Pakuisa nekushandisa, kutarisirwa kunofanira kutorwa kudzivirira kuisa RCBO munzvimbo inogona kukanganiswa kuitira kudzivirira kushanda kwayo kwenhema.

Kubata zvikanganiso panguva: Kana RCBO ikatadza kana kushanda, chikonzero chinofanirwa kuzivikanwa uye kugadzirisa dambudziko kunofanirwa kuitwa nenguva kuti ive nechokwadi chekushanda kwakachengeteka kwedunhu.
