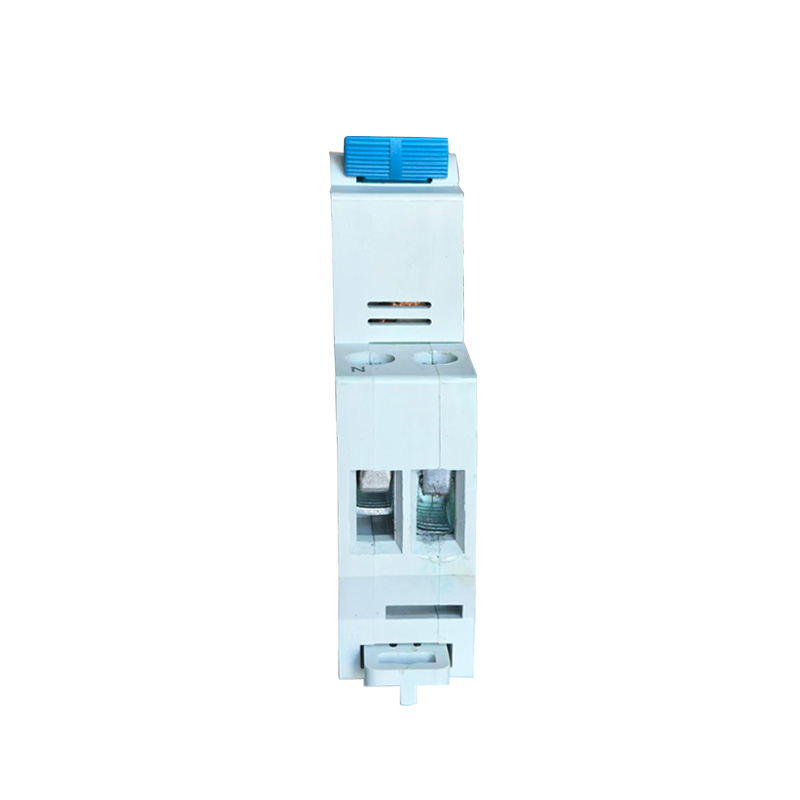

6ka Residual Current Circuit Breaker Pamusoro Pazvino Dziviriro RCBO

SONTUOEC ndomumwe wevatengesi/vagadziri vekuChina vanonyanya kugadzira midziyo midiki yakasiyana-siyana yemagetsi STRO1-40 RCBO, zita rakazara rinonzi Residual Current Circuit Breaker ine Overcurrent Protection. Icho chigadziro chekuchengetedzwa kwemagetsi chinobatanidza kuchengetedzwa kwekuremerwa, kupfupika-circuit kudzivirira uye kudzivirirwa kwekuvhara, uye inoshandiswa zvakanyanya mumagetsi emagetsi munzvimbo dzekugara, dzekutengeserana uye dzemaindasitiri kuti ave nechokwadi chekuchengetedzwa kwemunhu uye kushandiswa kwakachengeteka kwemidziyo.STRO7-40 RCBO chinhu chinokosha chekuchengetedzwa kwemagetsi nekuremerwa, kupfupika uye kudzivirirwa kwekuvhara. Nekunzwisisa misimboti yayo yekushanda, maitiro, mamiriro ekushandisa, uye sarudzo nekuisa nzira, unogona kushandisa zvirinani nekuchengetedza STRO7-40 RCBO kuve nechokwadi chekushanda kwakachengeteka kwemagetsi masisitimu.

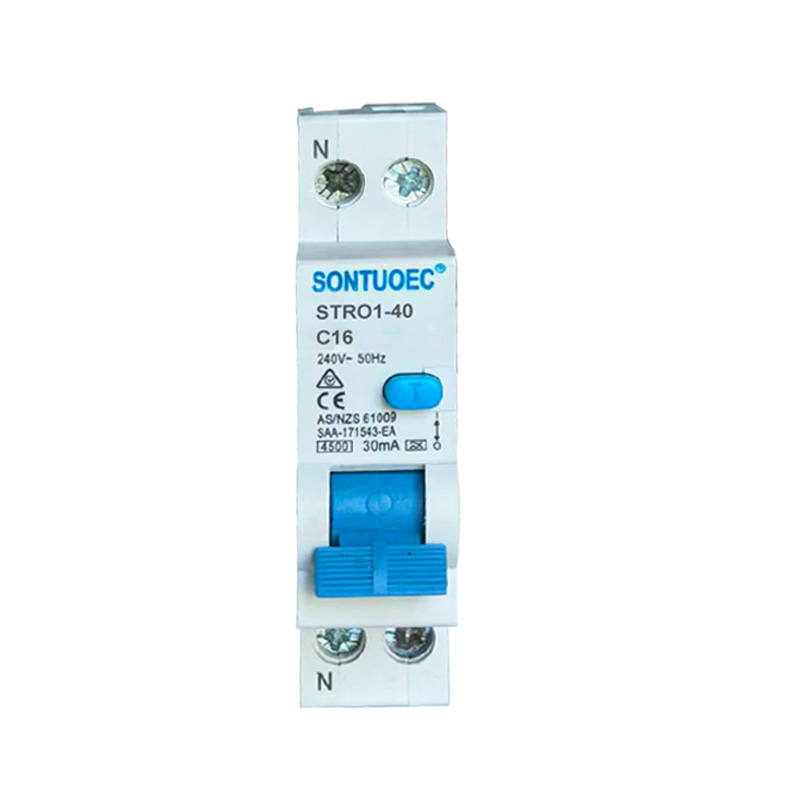

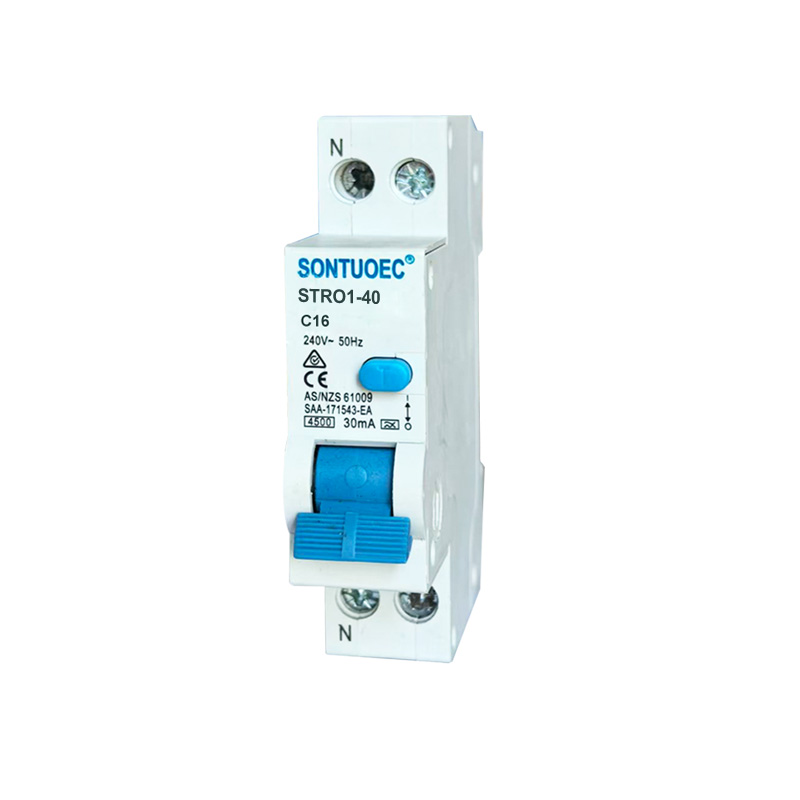

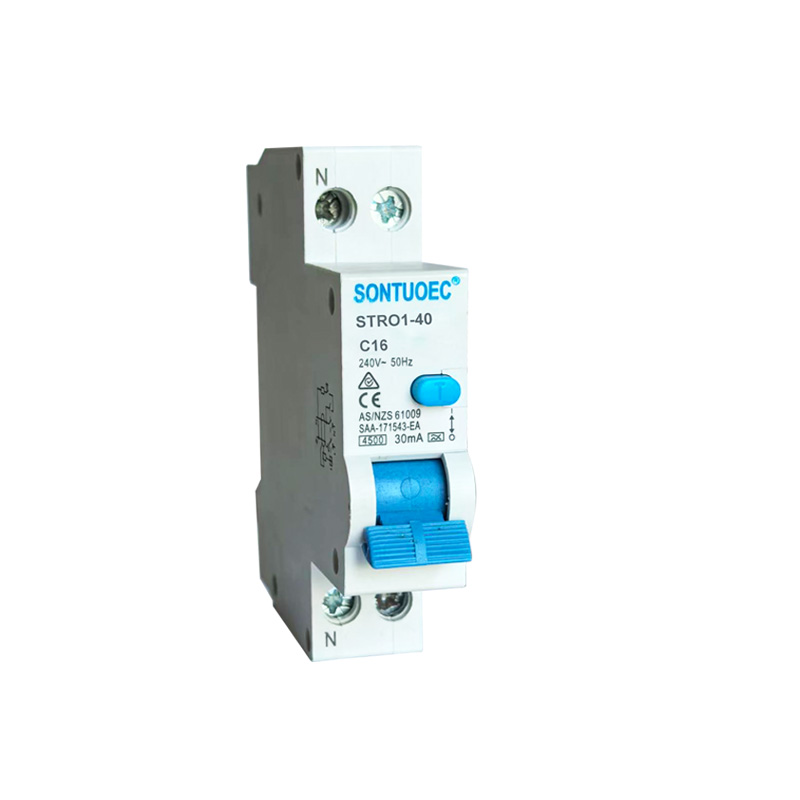

Model:STRO1-40

Send Inquiry

Product Description

Zvinodiwa:

Sandard			IEC/EN 61009-1
Zvemagetsi	Type(wave fomu repasi rinobuda rakanzwa)		Electronic type
features	Rated current In	A	A,AC
	Poles	P	1P+N
	Rated voltage	V	AC 230
	Rated Current :		6,10,16,20,25,32,40A
	Rated sensitivity I△n	A	0.01,0.03,0.1,0.3,0.5
	Insulation voltage Ui	V	250
	Rated residual kugadzira uye	A	500
	kutyora simba I△m	A	500
	Short-circuit current I△c	A	45,006,000
	Rated frequency	Hz	50/60
	Dhigirii rekusvibisa		2
Mechanical	Upenyu hwemagetsi	t	4000
features	Mechanical hupenyu	t	10000
	Dhigirii rekudzivirira		IP20
	Ambient tembiricha	ºC	-25~+40
	(neavhareji yezuva nezuva ≤35ºC)	ºC	-25~+40
	Kuchengetedza tembiricha	ºC	-25~+70
Installation	Terminal yekubatanidza mhando		Cable/U-type busbar/pini-type bhasi
	Terminal size kumusoro/pasi kwetambo	mm2	25
	Terminal size kumusoro/pasi kwetambo	AWG	18-5
	Terminal size kumusoro/pasi kwebhazi	mm2	25
	Terminal size kumusoro/pasi kwebhazi	AWG	18-3
	Mounting		PaDIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo
	Connection		Kubva kumusoro uye pasi

Mabasa makuru e STRO1-40 RCBO

Kuwedzeredza Kudzivirirwa: Kana iyo iripo mudunhu inodarika kukosha kwakayerwa kwe STRO1-40 RCBO, inozodzima dunhu mukati menguva yakatarwa kudzivirira dunhu nemidziyo kubva pakupisa, nokudaro kudzivirira moto uye kukuvara.

Kudzivirirwa kwedziviriro pfupi: Kana dunhu diki richiitika mudunhu, STRO1-40 RCBO ichakurumidza kugura dunhu kudzivirira kuti pfupi dunhu rirege kukonzera kukanganisa kwakakomba kudunhu nemidziyo.

Kudzivirirwa kweLeakage: Iyo STRO1-40 RCBO inokwanisa kuona yakasara ikozvino (kureva, inodonha ikozvino) mudunhu. Kana iyo yakasara inodarika chikumbaridzo chakaiswa, STRO1-40 RCBO ichacheka dunhu munguva pfupi kwazvo kudzivirira tsaona dzemagetsi nemoto wemagetsi.

Nheyo yekushanda kwe STRO1-40 RCBO

Iyo STRO1-40 RCBO ine yemukati yekupisa magineti rwendo detector (yekuremedza uye pfupi yekudzivirira yedunhu) uye yakasara ikozvino detector (yekudzivirira kuvuza). Kana iyo yazvino kana yasara yedunhu isina kujairika, anorova anokonzeresa anokonzeresa nzira ye STRO7-40 RCBO, ichiita kuti ikurumidze kugura dunhu.

1.Thermal Magnetic Tripper: Inoshandisa kupisa uye magnetic field inogadzirwa apo ikozvino inopfuura kuburikidza nekondukita kuti iite kugumburwa. Kana magetsi anyanya kukwira, conductor inodziya yogadzira magnetic field, zvichiita kuti bimetal iri mukati me thermal magnetic striker ikotame kana kuti magineti ikweve simbi, zvobva zvaita kuti mushini wekugumburwa.

2.Residual current detector: Inoshandisa zero sequence current transformer kuti ione kusara kwemazuva ano munharaunda. Kana iyo yakasara yadarika chikumbaridzo chakaiswa, inosarira ikozvino detector inotumira chiratidzo kumagetsi ekugumburwa kuti adimbure dunhu.

Zvimiro zve STRO1-40 RCBO

Multi-functional kubatanidzwa: Iyo STRO1-40 RCBO inosanganisa yakawandisa, pfupi-yedunhu uye yekudzivirira yekudzivirira mabasa, kurerutsa dhizaini nekuisa masisitimu emagetsi.

High senitivity: STRO1-40 RCBOs inogona kukurumidza kuona uye kugura zvisina kujairika uye yakasara mafungu mudunhu, ichipa chengetedzo yakavimbika.

Zviri nyore kuisa nekuchengetedza: STRO1-40 RCBOs dzinowanzo gadziridzwa kuti zvive nyore kugadzika uye kugadzirisa.

Kuchengetedzwa kwepamusoro: STRO1-40 RCBOs inoedzwa zvakasimba uye inosimbiswa nekuchengetedzwa kwepamusoro uye kuvimbika kuve nechokwadi chekushanda kwakachengeteka kwemagetsi emagetsi.

Mamiriro ekushandisa e STRO1-40 RCBO

STRO1-40 RCBOs anoshandiswa zvakanyanya mumagetsi masisitimu munzvimbo dzekugara, dzekutengesa uye dzemaindasitiri, kunyanya ayo anoda panguva imwe chete kuwandisa, kupfupika uye kuchengetedzwa kwevhu kudonha. Vanowanzoiswa mumabhokisi ekugovera, mabhodhi ekuchinja kana kudzora makabati kuchengetedza maseketi uye midziyo kubva mukukuvadzwa kunokonzerwa neabnormal current uye voltage, uye kudzivirira electrocution.
