AC Magineti Webasa

AC Magineti Inotaurirana Inoshandiswa Mune Simba Network ye AC 50hz kana 680hz, kusvika pamakumi matatu nemakumi matatu nemakumi matatu nemakumi mapfumbamwe nemashanu ekushandisa NeAntisurge Chishandiso, inogona kuderedza kukanganiswa kwekuvhara yekuvhiya uye kudzivirira kubva pakunyanyisa sekutyora.

Send Inquiry

Product Description

Nyora		Cj19-09	CJ19-12	Cj19-18	CJ19-25	CJ19-32	CJ19-40	CJ19-50	CJ19-65	Cj19-80	CJ19-95
Rated kushanda zvazvino (a)	Ac3	9	12	18	25	32	40	50	65	80	95
Rated kushanda zvazvino (a)	Ac4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratings ye3-chikamu Motors 50 / 60HZ inctategory ac-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated kupisa zvazvino (a)		20	20	32	40	50	60	80	80	125	125
Hupenyu hwakajeka	Ac3 (x104)	100	100	100	100	80	80	60	60	60	60
Hupenyu hwakajeka	Ac4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanika Hupenyu (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Nhamba yeVatengesi	3p + kwete					3P + NC + HAPANA
Nhamba yeVatengesi	3P + NC					3P + NC + HAPANA

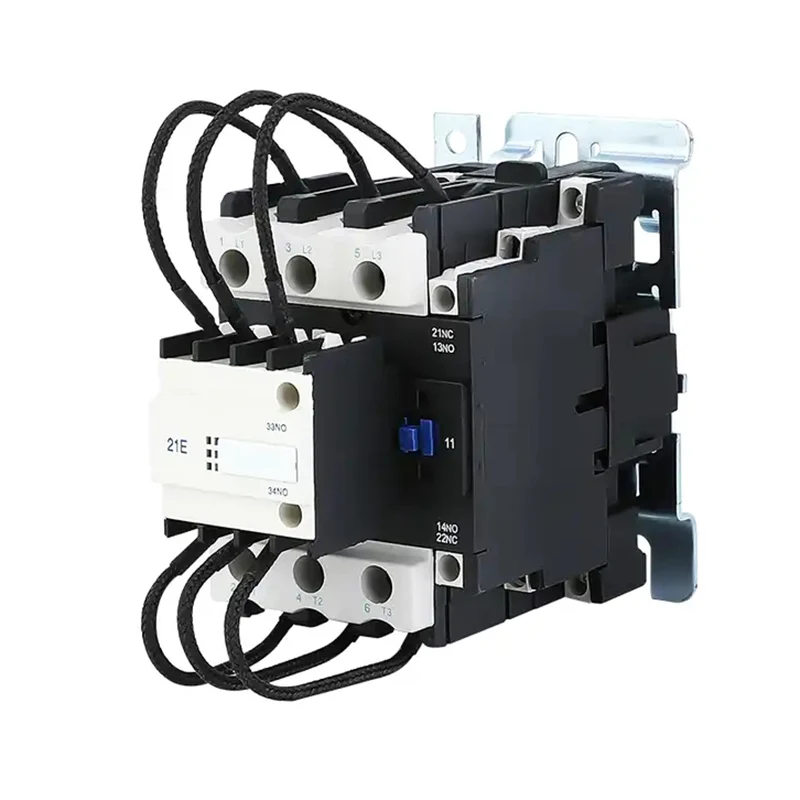

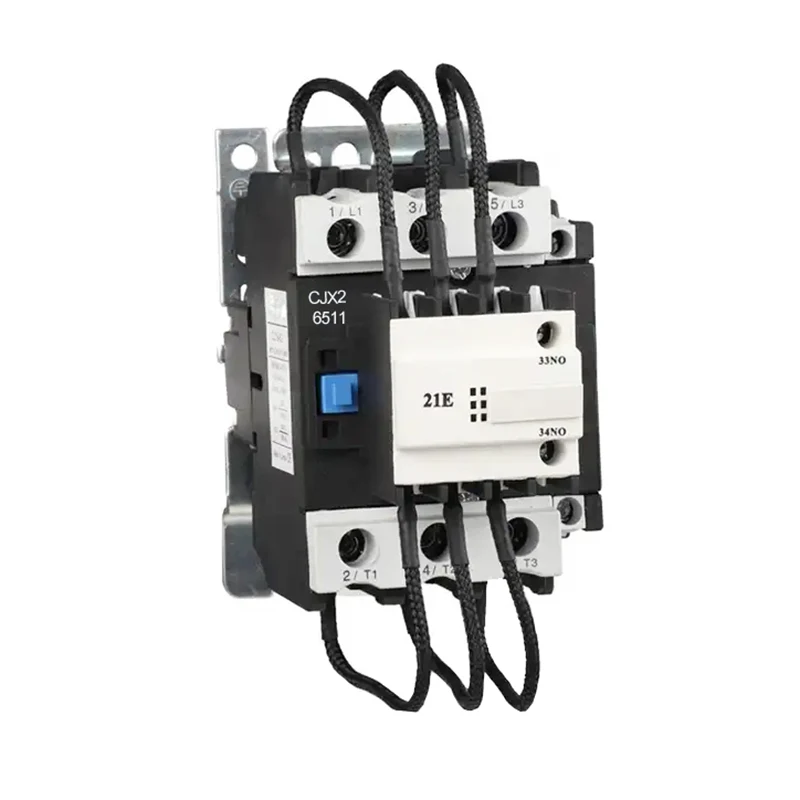

SCJ19 Shandura Capacitor Type Creator Inoshandiswa Mune Simba Network ye AC 50hz kana 680v, yekushandisa Olv Capacitor Kudzora mudziyo wedunhu. NeAntisurge Chishandiso, inogona kuderedza kukanganiswa kwekuvhara yekuvhiya uye kudzivirira kubva pakunyanyisa sekutyora.

Nheyo yekuvhiya

Nhungamiro yekushandisa yeAC Magineti inotaurirana inoenderana neElectromagnetic induction uye magineti simba. Kana iyo coil ichisimbisa, iyo magineti yemagineti yakagadzirwa inokwezva iyo Iron Core uye inovhara vatevedzani, nokudaro vachivhura dunhu. Kana iyo coil iri-inosimbiswa, munda wemagineti unonyangarika, iyo simbi core inogadzirisa pasi pechiteshi, kuonana kwacho kwakatyoka uye kutenderera kuchabviswa. Nenzira iyi, iyo AC Magineti inotaurirana anoona kudzora kweiyo accuiti.

Chimiro uye kuumbwa

AC Magineti Wefoni inonyanya kuumbwa nezvikamu zvinotevera:

Electromagnetic System: Inosanganisira zvikamu zvakaita sekasirese, musimboti uye Armature, ndedzipi zvikamu zvakakosha zvekugadzira magineti emagineti uye maitiro.

Kubata System: Inosanganisira iyo huru yekuonana uye yebetsero yekusangana, iyo inoshandiswa kuvhura uye kubva mudunhu. Iyo mainatidziro mainini anowanzo shandiswa kutakura mahombekombe makuru, nepo mafambisirwo ebetsero anoshandiswa kuziva akasiyana siyana mabasa ekugadzirisa.

Arc Kubhururuka Kwekudzima: Inoshandiswa kudzima iyo arc iyo iyo kusangana ichidzikiswa, kudzivirira iyo arc kubva mukukuvadza kuonana.

Zvimwe zvikamu: senge matsime, mabhureki, housings, etc., anoshandiswa kugadzirisa uye kutsigira zvinhu kuti uve nechokwadi chekushanda kwakajairika.

Chimiro chimiro

1.The contacter akaunganidzwa neazvino kushoma kuramba, kukwanisa kudzikisira kuchinjisa-pane yekuvhiya mukati mekutangira kukosha.

2.The Contaction ndeyekuita zvakananga kuita zviga-kuputsa chimiro, kuita mechanism kwasarudzika, zviri nyore kutarisa neruoko, compact formencencentionts kutsiva vatevedzeri.

3.Wiring terminal block inodzivirirwa nekuvhara, yakachengeteka uye yakavimbika.

4.I inogona kukwiwa ne screws, kana pa35 / 75mm standard njanji.

Kushanda uye Kuisa Mamiriro ezvinhu

(2. Mune mumwechete wemwedzi avhareji yakaderera tembiricha + 25 ℃ yeavhareji ine huwandu hwepamusoro humidity iri 90%, uye uchifunga nezvekuchinja kwekushisa uye kuitika nekuti chigadzirwa chiri pamusoro pegwenzi.

(3) Altitudes isina kukwirira kupfuura 2000m kana kuisirwa.

(4) Kirasi yekusvibisa: 3 kirasi

(5) Kuisa Kirasi: III

Zvikuru Zvekuita

Kuvimbika Kushanda: AC Magineti Weki kwakagadzirwa nemhando yepamusoro yezvinhu uye epamberi maitiro ekugadzira, iyo ine yakanyanya kuvimbika uye kugadzikana.

Hupenyu Hwekumushandi Hwakareba: Iyo yekuonana system yakagadzirwa nemidziyo yekupfeka, iyo inogona kutsungirira yakakura iripo yazvino uye yekuvhiringidzika, ichingowedzera hupenyu hwebasa.

Zviri nyore kuchengetedza: chimiro chinogadzirwa zvine chikonzero, zviri nyore kubvisa nekugadziriswa, kuderedza mari yekugadzirisa.

Zvakasiyana-siyana zvirevo: Kuti usangane nezvinodiwa nevashandisi vakasiyana, AC Magineti Anosiyana-siyana vane ruzivo rwezvemhando dzakasiyana, kusanganisira huwandu hwazvino, mazinga ezvinyorwa uye zvebetsero yekubata kwebetsero.

AC Magnetic Contactor
