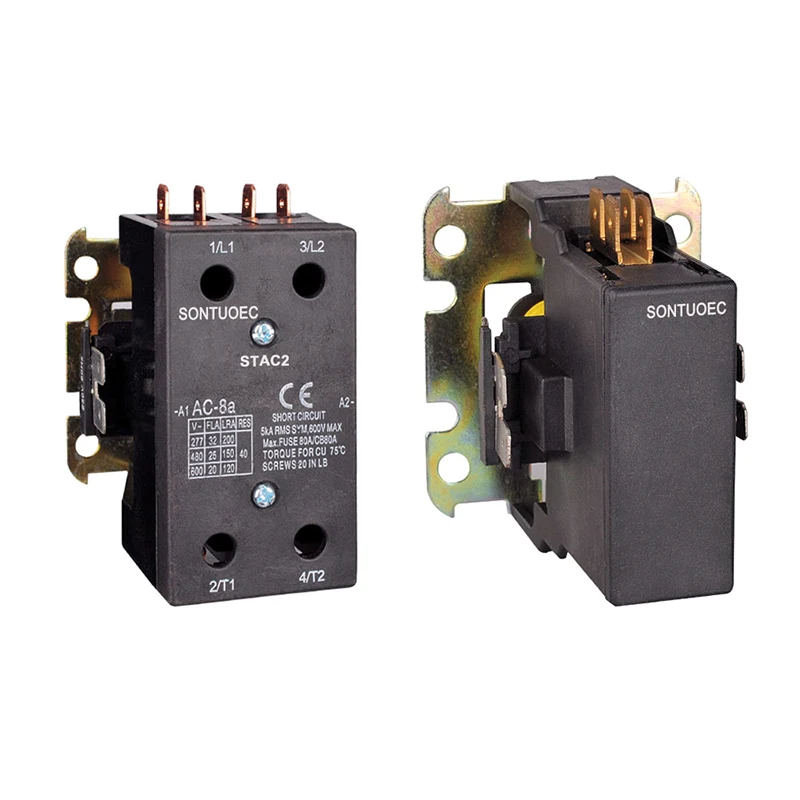

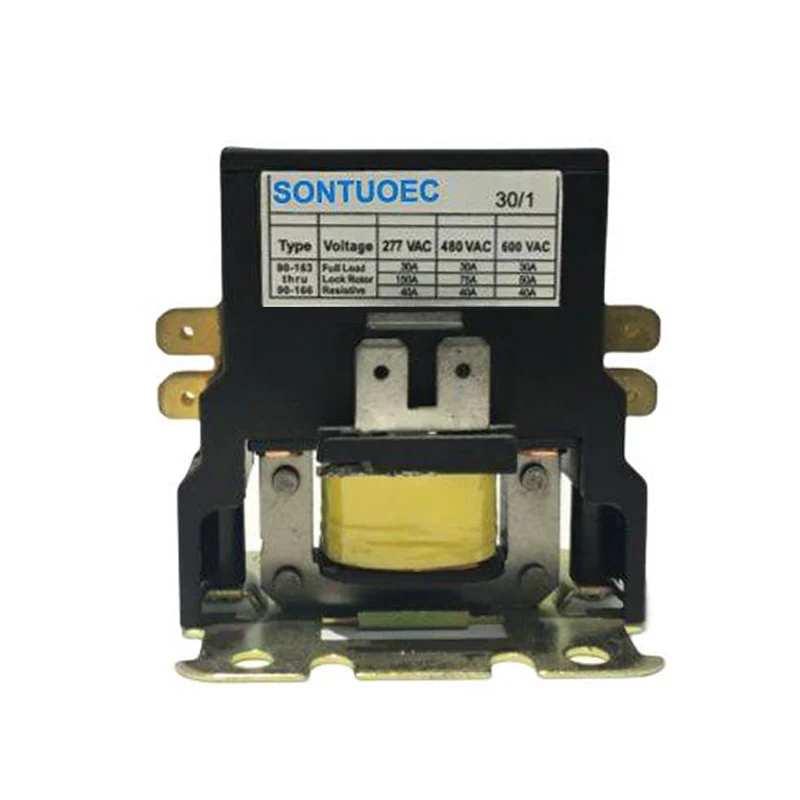

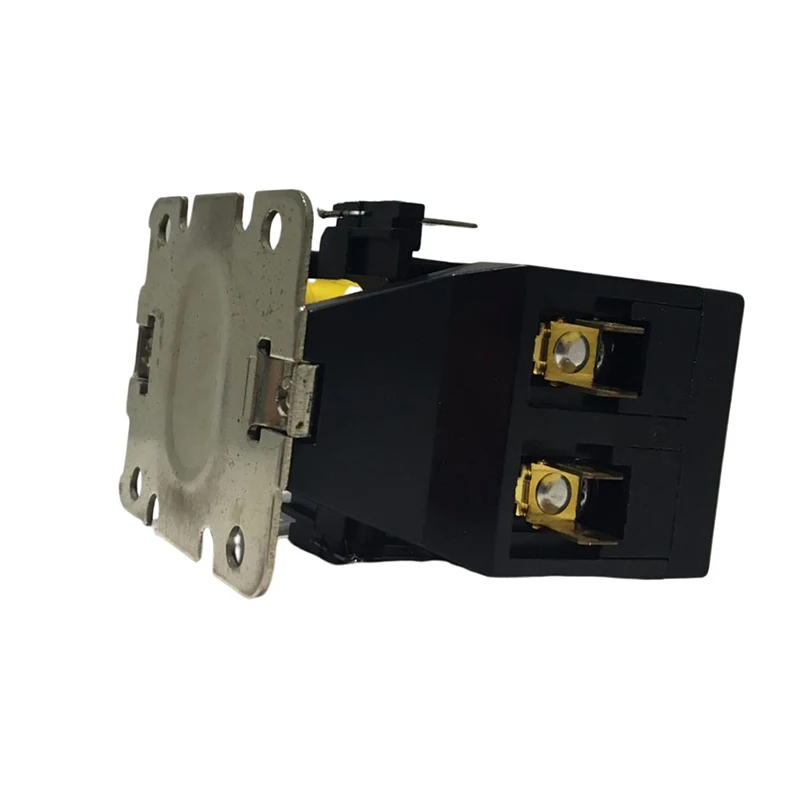

Mhepo yemhepo AC Contactor

Mhepo yemhepo acconting is a littlecher chinangwa AC Contacor yakagadzirirwa kushandiswa mufiriji, mamiriro emhepo, uye emagetsi ekupisa systens. Simba kubatana kunogona kuitwa pamwe necrew turminals neinokurumidza kubatanidza kana lug terminals neinokurumidza kubatanidza

Send Inquiry

Product Description

Modhi kwete	Mutoro wakazara	Vanoramba Amps (a)	Pole Kwete	Coil Voltage ( V)	Line Voltage (v)	Max HP		-
Modhi kwete	Amps (a)	Vanoramba Amps (a)	Pole Kwete	50 / 60H	Line Voltage (v)	Voltage (V)	Single Chikamu	Tatu Chikamu
CJX9-20 / 1	20	30	1	24	240/277	120	1.5	-
CJX9-20 / 1.5			1.5
CJX9-20 / 2			2
CJX9-20 / 3			3	120	480	240/270	3	7.5
CJX9-20 / 4			4	208/240	600	480/600	-	7.5
CJX9-25 / 1.5	25	35	1.5	24	240/277	120	2	-
CJX9-25 / 2			2	24	240/277	120	2	-
CJX9-25 / 3			3	120	480	240/270	5	7.5
CJX9-25 / 4			4	208/240	600	480/600	-	15/20
CJX9-30 / 1.5	30	40	1.5	24	240/277	120	2	-
CJX9-30 / 2			2	120	480	240/270	5	10
CJX9-30 / 3			3	208/240	600	480/600	-	15/20
CJX9-30 / 4			4	208/240	600	480/600	-	15/20
CJX9-40 / 2	40	50	2	24	240/277	120	3	-
CJX9-40 / 3	40	50	3	120	480	240/270	7.5	10
CJX9-40 / 4	40	50	4	208/240	600	480/600	-	15/20
CJX9-50 / 2	50	60	2	24	240/277	120	3	-
CJX9-50 / 3	50	60	3	120	480	240/270	10	15
CJX9-50 / 4	50	60	4	208/240	600	480/600	-	25/25
CJX9-60 / 2	60	70	2	24	240/277	120	5	-
CJX9-60 / 3	60	740	3	120	480	240/270	10	20
CJX9-60 / 4	60	70	4	208/240	600	480/600	-	30/30
CJX9-75 / 2	75	85	2	24	240/277	120	5	-
CJX9-75 / 3	75	85	3	120	480	240/270	15	25
CJX9-75 / 4	75	85	4	208/240	600	480/600	-	40/40
CJX9-90 / 2	90	100	2	24	240/277	120	7.5	-
CJX9-90 / 3	90	100	3	120	480	240/270	20	30
CJX9-90 / 4	90	100	4	208/240	600	480/600	-	50/50

Inosimbisa zvinhu	Bata block uye mutakuri ane mhando yepamusoro magetsi-giredhi orgmasting resin
Tembiricha	-40 ° F to 150 ° F; -5- + 40
HUMEDZA Hupenyu (hapana mutoro)	Conforms kuUL uye ARI DZESVONDO REMAHARA
Hupenyu hwemagetsi	Inoenderana neUL uye ARI YAKANYANYA Standard
Uremu (fungidziro)	9.25 OZ
Coils frequency	50 / 60H
Coil insulation	Kirasi B (130ºC)
Kupera	Dzvinyiriro yekubatanidza uye kaviri 1/4 q.c
Shanda	85% yeiyo zita reCoil Colitage; 110% yakachengeteka shanda
Duty kutenderera	Kuenderera mberi

Chimiro uye maficha

Chimiro:

Electromagnetic System: Inosanganisira zvikamu zvakadai semakombiyuta, maCores, etc., izvo zvinoshandiswa kuburitsa magineti kuti utyaire kuvhura uye kuvhara kwehurongwa hwekutaurirana.

System yekuonana: Inosanganisira maincon uye ebetsero yekusangana. Iko kufambidzana kukuru kunoshandiswa kutakura zvakakwenenzverwa zviripo zvemhepo mamiriro ekuratidzira yemhepo, nepo kufambidzana kwebetsero kunoshandiswa kuona kutapurirana uye mhinduro yeiyo chiratidzo.

Arc inowedzera mudziyo: Inoshandiswa kudzima iyo arc yakagadzirwa kana iyo yekuwonana yakabviswa kuchengetedza iyo yekuwisana kubva kukuvara.

Shell uye kupisa kusvibisa chishandiso: yakashandiswa kuchengetedza zvikamu zvemukati kubva kunzvimbo dzekunze uye dzinopa zvinodikanwa kupisa kusagadzikana kwekusarongeka.

Zvimiro:

Specialization: Yakagadzirirwa yemhepo mamiriro ekugadzirisa masisitimu kuzadzisa zvinodiwa zvemhepo mamiriro ekugadzirisa masisitimu ekugadzirisa kwemagetsi.

Kuvimbika: Iyo yekuonana system yakagadzirwa nezvinhu zvepamusoro-zvemhando yepamusoro nemagetsi akanaka nemagetsi ekuita uye anodzivisa kupokana kuti ave nechokwadi chekureva kwenguva refu.

Kuchengetedza: Kushongedzwa neakakwana arc yekudzima mudziyo, zvinobudirira kudzivirira arc kukuvara kune vafambi uye nharaunda yakapoteredzwa.

Kuenderana: Kuenderana neyakawandisa yemhepo-mamiriro ekugadzirisa masisitimu uye magetsi ekudzora masisitimu, zviri nyore kuisirwa uye kubhadharisa.

Basa rekushanda

Kana iyo coil ye 2P mhepo inogadzirisa AC Contacter, iyo simbi core inova magineti uye inokwezva iyo yekubata system kuvhara, nekudaro inobatanidza mamiriro emhepo mamiriro ekuisa simba kune simba remagetsi. Kana iyo Coil ichinge iri-simba, iyo iron misoro inorasikirwa nemagineti yaro uye system yekuonana ichaparadzaniswa nechiito chechitubu, nekudaro kudzima iyo mhepo mamiriro ekunze kubva kune simba sosi. Nenzira iyi, mutauri anogona kuziva kudzora kwemhepo yemhepo mamiriro ekugadzirisa.

Air Conditioning AC Contactor
