Curve d mcb miniature circuit breaker

Nekutevedzera huwandu hwenhoroondo dzekuchengetedza nyika uye curve de certifitions Paunenge uchisarudza uye uchishandisa curve D MCBS, zvinokurudzirwa kuti kusarudzwa kuve kwakavakirwa pazvinhu zvemagetsi zvemagetsi zvinodikanwa uye kutakura maitiro, uye iyo yekuisa mari uye macodhi ekugadzirisa zvichiteverwa.

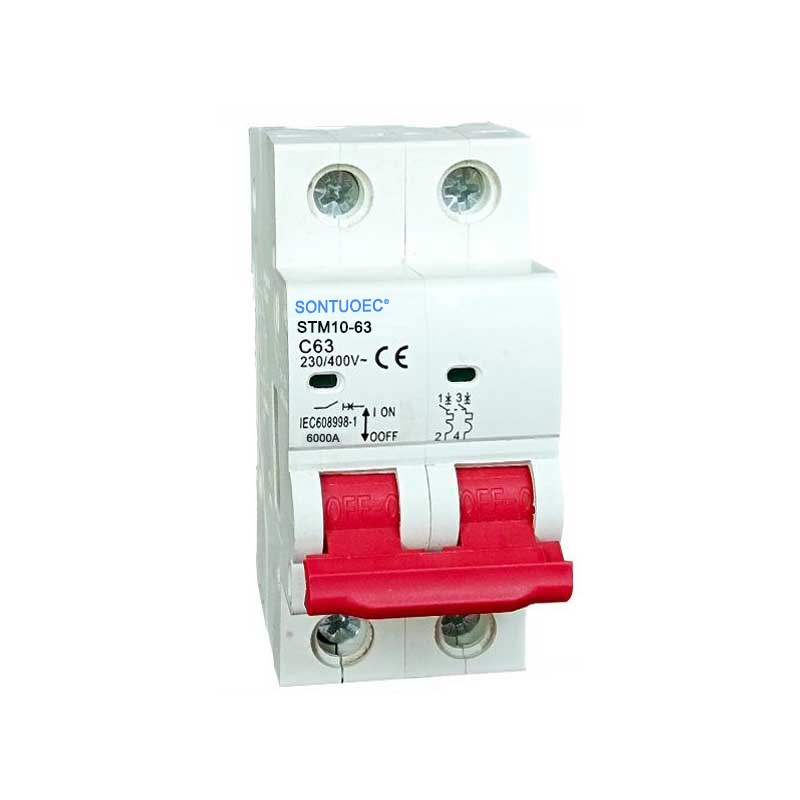

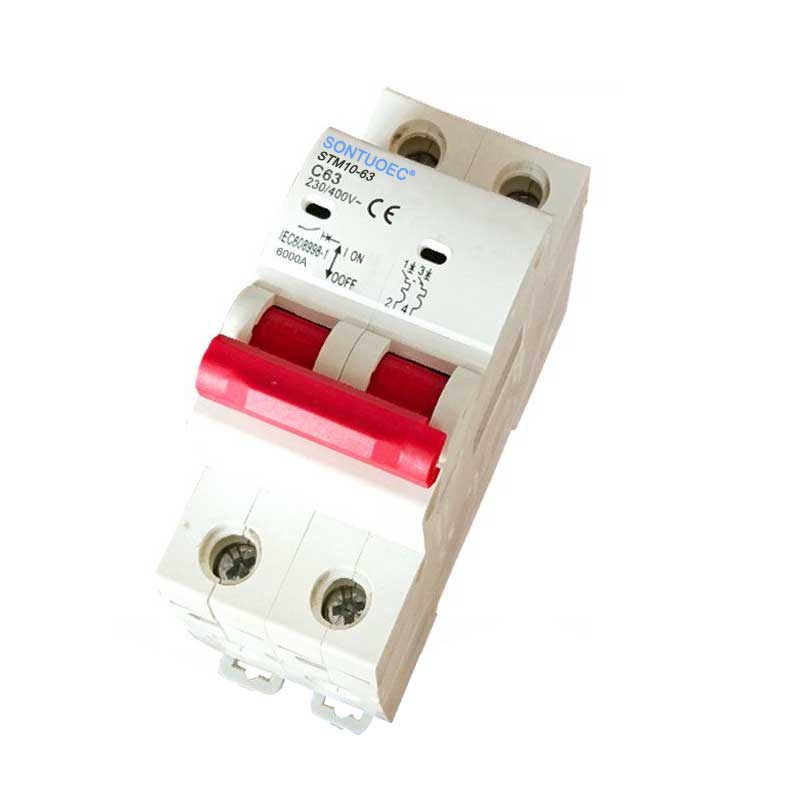

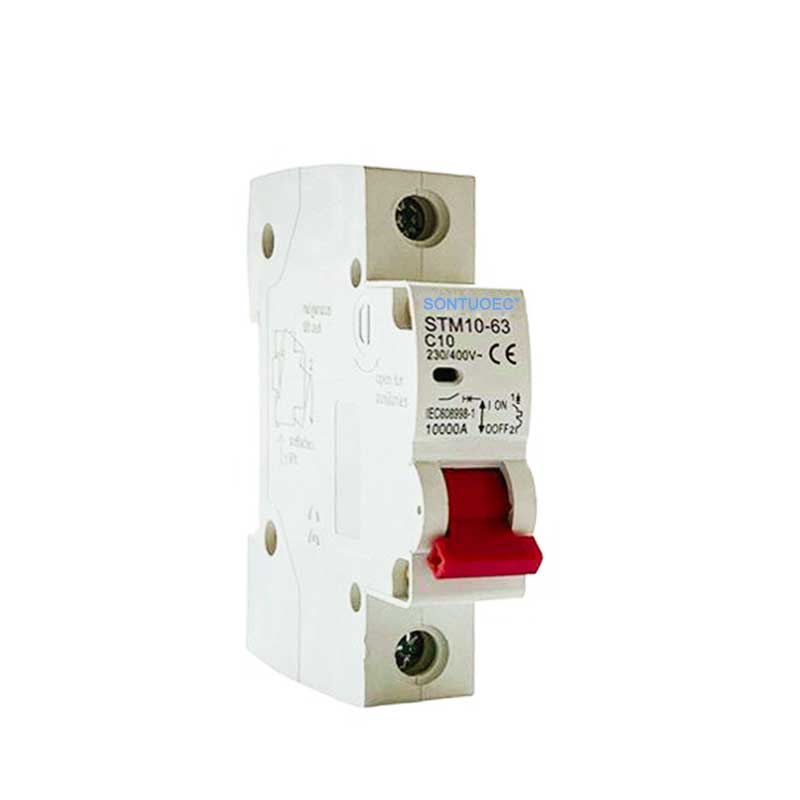

Model:STM10-63

Send Inquiry

Product Description

Standard		IEC / en 60898-1
Magetsi Zvimiro	Yakatarwa zvazvino mukati	A	1,2,4,6,10,10,10,10,10,02,25,38,48,50,63a
	Matanda	P	1p, 2p, 3p, 4p
	Rated Voltage ue	V	Ac 230/400
	Insulation Voltage UI	V	500
	Rated Frequency	HZ	50/60
	Rated Kupwanya Kugona	A	3000, 4500, 6000
	Rated kukurudzira kwakaraswa voltage (1.2 / 50) uimp	V	4000
	Dielectric test voltage at in in in in in in in in in in in in in in in 1 min	KV	2
	Degree degree		2
	Thermo-magineti kuburitsa hunhu		B, c, d
Michina Zvimiro	Hupenyu hwakajeka	t	4000
	HUMEDZA Hupenyu	t	10000
	Dziviriro		IP20
	Tembiricha yekuisa yeiyo yekudzivirira	ºc	30
	Ambient tembiricha (ine mazuva ese avhareji ≤35ºc)	ºc	-5 ~ + 40 (Special application ndapota tarisa kune tembiricha yekumanikidza kururamisa)
	Kupisa tembiricha	ºc	-25 ~ + 70
Kuisirwa	Terminal yekubatanidza mhando		Cable / Pin-Type Busbar
	Terminal size yepamusoro / pasi yetambo	mm2	25
		AWG	18-3
	Saizi yeTreminal yepamusoro / pasi yebhasibar	mm2	25
		AWG	18-3
	Kusimbisa torque	N * m	2
		Mu-lbs	18

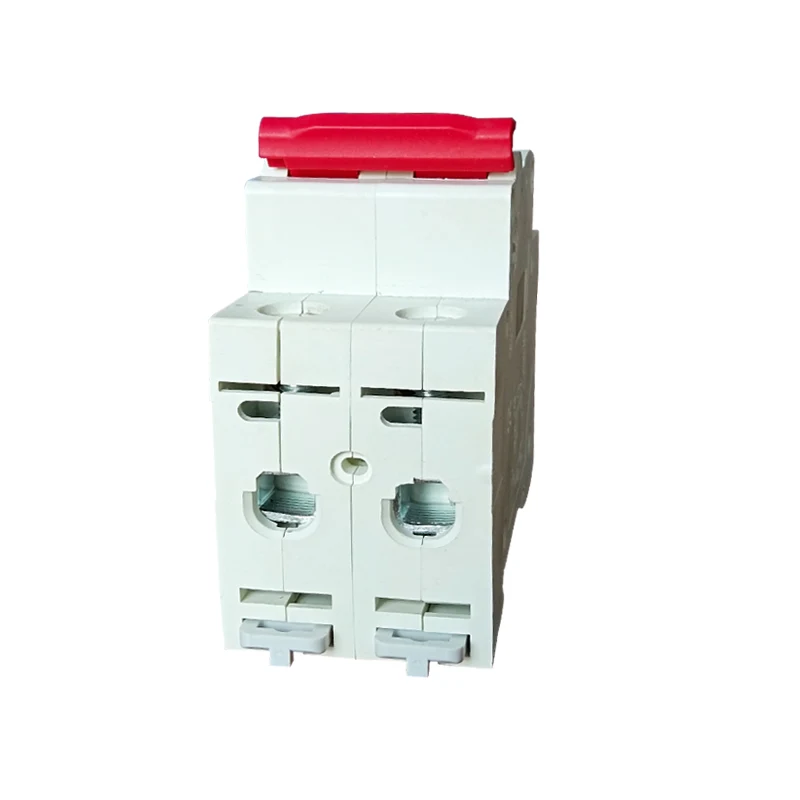

	Kukwira		pane din njanji en 60715 (35mm) nenzira yekukurumidza clip mudziyo
	Kubatana		Kubva kumusoro uye pasi

Hunhu hwechigadzirwa

Ongorora zvazvino uye kupururudza voltage yakanangana neyakaenzana mitezo yakaenzana.

 Kubvisa Hunhu: Curve D MCBS inonyanya kukodzera kune yakakwirira inductive mitoro, semagetsi madiki anogadzira masisitimu, semagetsi emagetsi, masisitimu ekugovera masisitimu, uye masisitimu ekugovera masisitimu. Yayo kuputsa kwayo inowanzoitika 10-40 nguva iyo yakatarwa yazvino, zvinoreva kuti inogona kukurumidza kutema masenduru uye kuchengetedza zvishandiso kubva mukukuvara kwekuwedzera kwekuwedzera mune zvazvino.

D-pfupi-redunhu Dziviriro

 Kuchengetedza Maitiro: Izvi zvigadzirwa zvinowanzoenderana nehuwandu hwekuchengetedza kwenyika dzekuchengetedza, dzakadai seEC / IEC 60898.1, CB, CCC, TUV, kuva nezvigadzirwa zvakachengeteka uye zvakavimbika.

Curve D MCB Miniature Circuit Breaker
