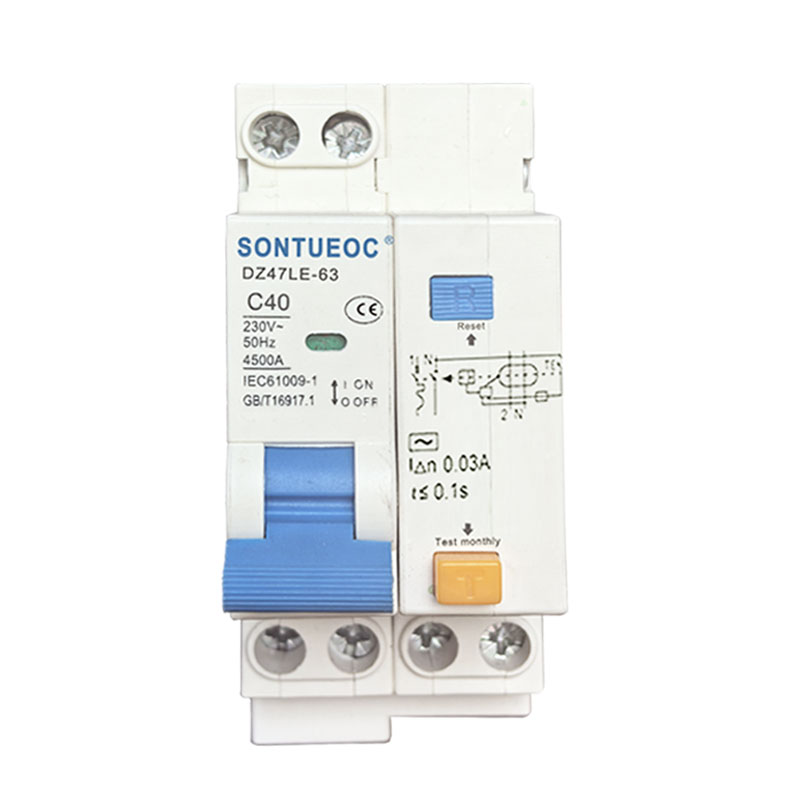

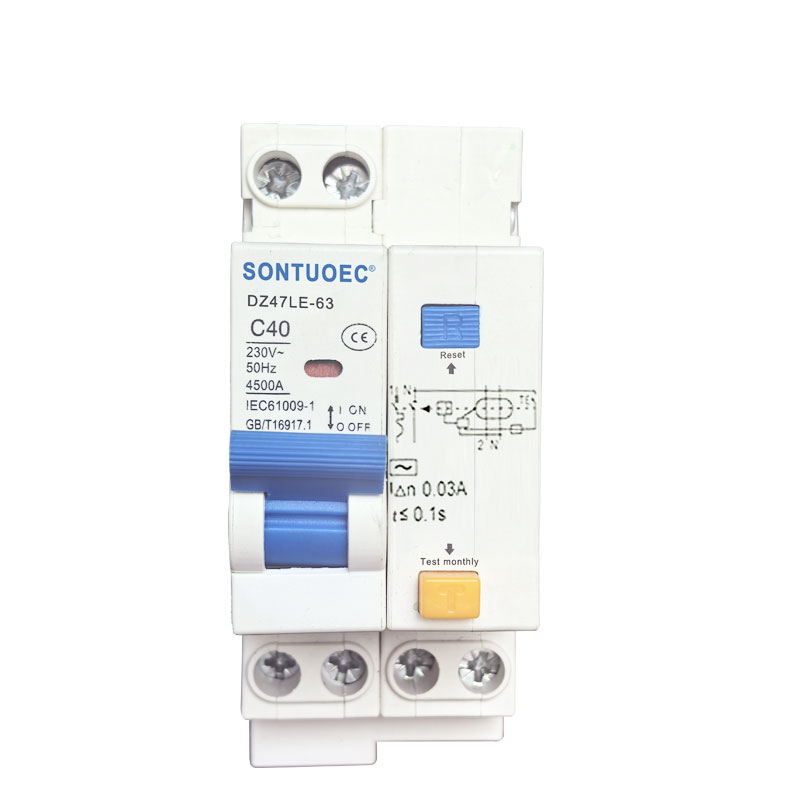

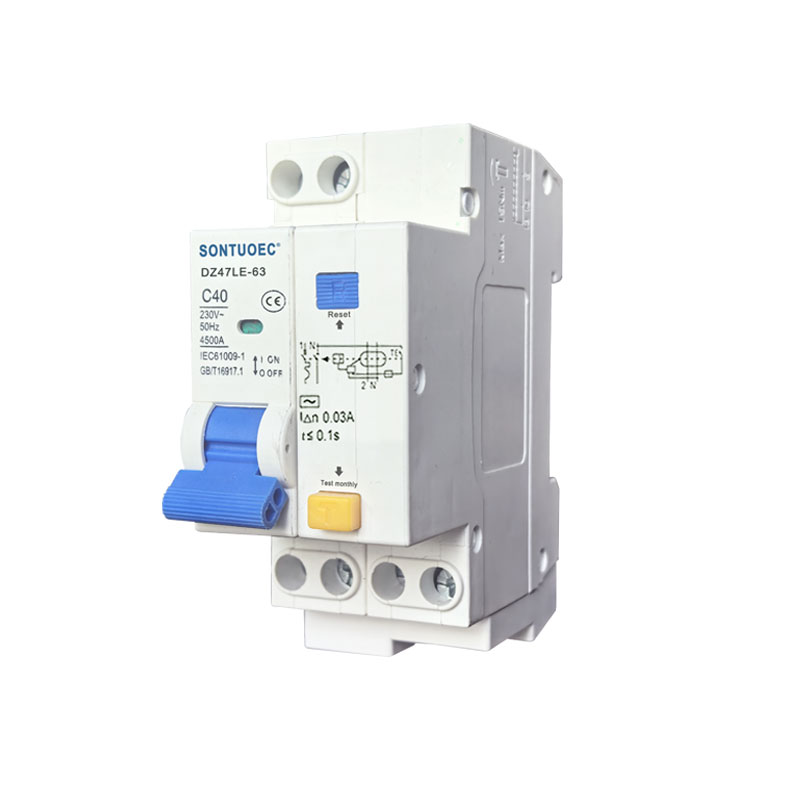

Dz47le-63 RCBO Series Leakage Current Circuit Breaker

SONTUOEC ndeimwe yevatengesi/vagadziri vekuChina vanonyanya kugadzirwa nemagetsi madiki akasiyana. 4 pole uye yakatemerwa azvino kusvika 63A. Inogona kudzivirira tambo uye motor pakuwandisa uye pfupi dunhu Inogona kushandiswa kusandura mutsara uye kusawanzotanga motikari.Inopindirana ne tsika dze IEC61009.1.

Model:DZ47LE-63

Send Inquiry

Product Description

Technical Parameters:

Rated Voltage(V)	Yakatemerwa Yezvino Yenyaya Inm(A)	Poles	Neutra	Yakatemerwa CurrentIn(A)	Yakarongerwa Short Circuit Breaking Capacity Icu(KA)		Rated Current Leakage Breaking Current	Yakatemerwa Zvazvino Haisi Kutyora Zvazvino (mA)
Rated Voltage(V)	Yakatemerwa Yezvino Yenyaya Inm(A)	Poles	Linel	Yakatemerwa CurrentIn(A)	Breaking Capacity Icu(KA)	COS	(mA))	Yakatemerwa Zvazvino Haisi Kutyora Zvazvino (mA)
230	6-63	1	N	6, 10, 16,	6	0.7	30,50,	15, 25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

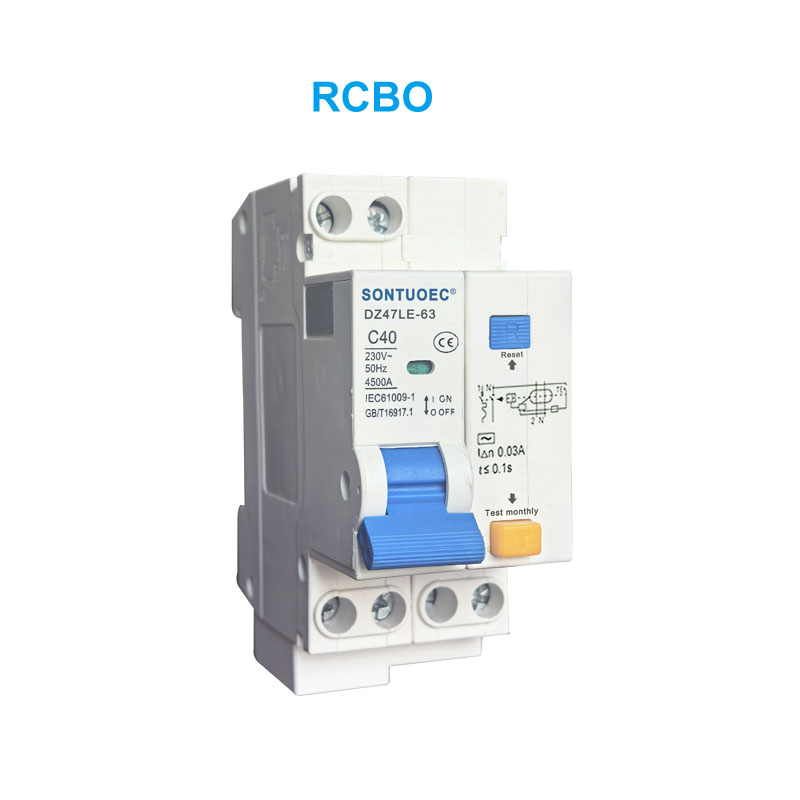

DZ47LE Residual Current Operated Circuit Breaker ine over-current protection (Electronic):

1. Kushandisa

Vashandi uye kudzivirira moto

Cable uye kuchengetedzwa kwemutsara kubva pakuremerwa uye mapfupi-sekete

2. General mitemo yekusarudza RCBO:

a.Rrated residual operating current

Mu ≤ 30 mA: kuchengetedzwa kwekuwedzera mune yekusangana kwakananga Mu ≤300 mA: kudzivirira moto kudzivirira kana iri pasi fault currents

b.Tripping class

AC kirasi - Kufamba kunovimbiswa kune sinusoidal, alternating currents, ingave ichikurumidza kuiswa kana kuwedzera zvishoma nezvishoma.

c.Tripping curve

C curve (5-10 In) kuchengetedzwa uye kutonga kwemaseketi kubva pakuremerwa uye mapfupi-circuits; dziviriro ye resistive uye inductive mitoro ine yakaderera inrush ikozvino.

D curve (10-14 In) kuchengetedzwa uye kutonga kwemaseketi kubva pakuremerwa uye mapfupi-circuits; kuchengetedzwa kwemaseketi anopa mitoro ine yakakwira inrush ikozvino pakuvharwa kwedunhu (LV/LV transformers, marambi ekupwanya).
