Dz47le-63 Series Yakabatana Chitarisiko Size Circuit Breaker RCBO

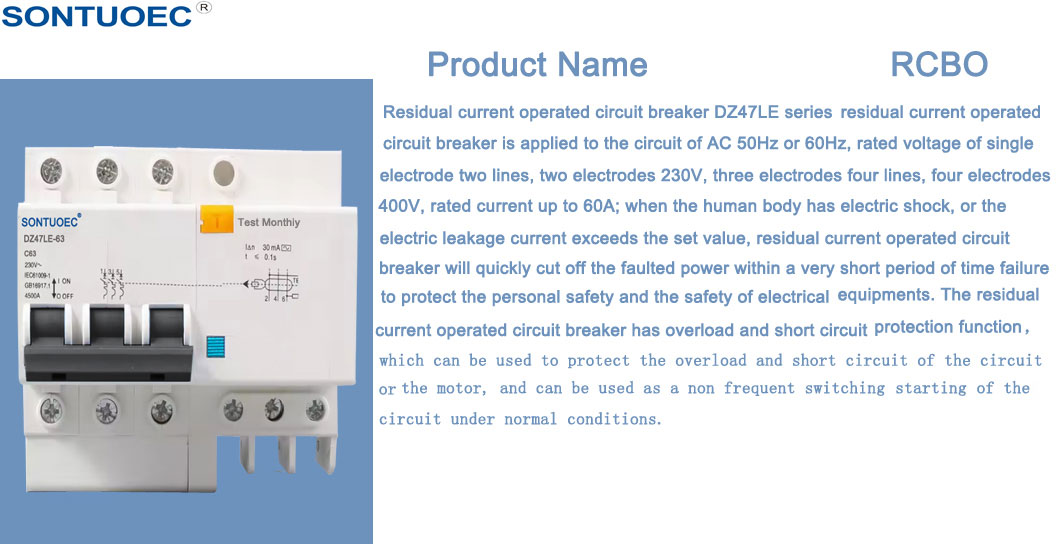

1.RCBO inonyanya kushandiswa mu AC 50Hz(60Hz), rated voltage 230/400V, rated current 6A kusvika 63A low voltage terminal distribution system. RCBO yakaenzana neMCB+RCD basa; Inoshandiswa kudzivirira kuvhundutsa kwemagetsi uye kudzivirira kubatwa nemunhu zvisina kunanga, kuchengetedzwa kwemidziyo yemagetsi kana muviri wemunhu unobata magetsi kana network yemagetsi inobvinza inodarika kukosha kwakatarwa, uye pamusoro pemutoro uye kuchengetedzwa kwedunhu pfupi; Inogona zvakare kuve isina-frequency operator mudunhu, ichishandiswa zvisingaite munzvimbo dzinogara vanhu uye dzekutengeserana. Iyo inoenderana neyakajairwa IEC61009-1. 2.MCB inoshandiswa mu AC50/60Hz, rated voltage ye 230V3, 4 poles 400V, yakayerwa iyezvino kusvika 63A pakuremedza uye kudzivirira kwepfupi-circuit pamwe chete nekuchinja kusingawanzoitiki mumamiriro ezvinhu akajairika.Inoshandiswa zvakanyanya kuindasitiri, kutengeserana uye mhuri.Chigadzirwa ichi chinoenderana neIEC60898 chiyero. 3.RCCB inopindirana nemitemo yeIEC61008.Inogona kugura chikanganiso chekukanganisa pakarepo pachiitiko chekuvhundutsa kana kuputika kwepasi kwe trunkline.Saka zvakakodzera kudzivisa njodzi yekuvhundutsa uye moto unokonzerwa nekubuda kwepasi.Inogona kushandiswa mumasekete kusvika kuchikamu chimwe chete 240V, chikamu chetatu 40z 60H 60H, 50H 60H, 60H

Model:DZ47LE-63

Send Inquiry

Product Description

Zvinodiwa:

RCBO

	Standard	Unit	IEC/EN 61009-1
Zvemagetsi	Mode		Electronic type
features	Type(wave fomu yepasi rinobuda rakanzwa)		A, AC
	Thermo-magnetic kusunungurwa maitiro		B,C,D
	Rated current ln	A	6,10,16,20,25,32,40,63
	Poles	P	1P+N, 3P+N
	Rated voltage Ue	V	AC 230, 400
	Rated sensitivity I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Yakayerwa yasara kugadzira uye kutyora kugona l△m	A	500
	Yakatemerwa pfupi-yedunhu simba Icn	A	6000
	Nguva yekuzorora pasi peI△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulsewithstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage pa ind.Freq ye1min	kV	2
	Insulation voltage Ui	V	250
	Dhigirii rekusvibisa		2
Mechanical features	Upenyu hwemagetsi		4000
	Mechanical hupenyu		10000
	Fault current Indicator		EHE
	Dhigirii rekudzivirira		IP20
	Ambient tembiricha	ºC	-5 ~+40(Chishandiso chakakosha ndapota tarisa kune
	(neavhareji yezuva nezuva≤35ºC)	ºC	kururamisa tembiricha muripo)
	Kuchengetedza tembiricha	ºC	-25~+70
Installation	Terminal yekubatanidza mhando		Cable/Pin-type busbar/U-type busbar
	Terminal size kumusoro/pasi kwetambo	mm2	25
	Terminal size kumusoro/pasi kwetambo	AWG	5月18日
	Terminal size kumusoro/pasi kwebhazi	mm2	25
	Terminal size kumusoro/pasi kwebhazi	AWG	3月18日

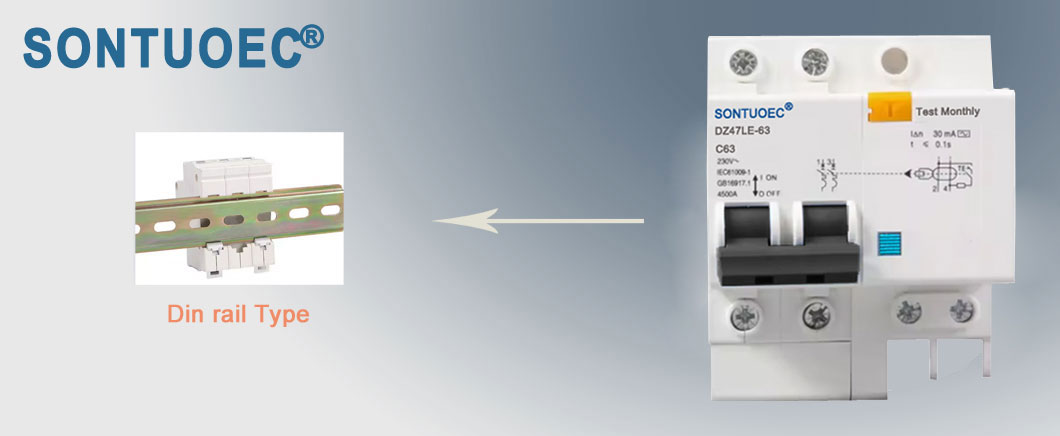

	Mounting		PaDIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo
	Connection		Kubva kumusoro

Roduct Over View:

1. Ipa dziviriro pakukanganisa kwepasi / kuvuza ikozvino uye basa rekuzviparadzanisa nevamwe

2. High short-circuit current inomira simba3. Inoshanda kune terminal uye pini / forogo mhando busbar yekubatanidza

5. Bvisa otomatiki dunhu kana kukanganisa kwepasi / kuvuza kwazvino kuchiitika uye kudarika kunzwisiswa kwakayerwa.

6. Kuzvimiririra kwemagetsi uye mutsara wemagetsi, uye pasina kupindira kwekunze, kushanduka kwemagetsi.

MCB

Model	MCB
Standard	IEC60898-1
Pole	1P,2P,3P,4P
Tripping Curve	B,C,D
Yakatemerwa Short-circuit kugona (Icn)	3KA,4.5KA,6KA,10KA
Yakatemerwa Zvazvino(Mu)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Magnetic inoburitswa	B curve: pakati pe3 ne5 mukati
	B curve: pakati pe3 ne5 mukati
	C curve: pakati 5uye 10in
	C curve: pakati 5uye 10in
	D curve: pakati pe10 ne14In
	D curve: pakati pe10 ne14In
Electro-mechanical endurance	pamusoro pe6000 cyclesC

RCCB


	Standard	Unit	IEC/EN 61008-1
Zvemagetsi	Type(wave fomu yepasi rinobuda rakanzwa)		AC, A
Feature	Rated current In	A	16,25,32,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.01,0.03,0.1,0.3
	Insulation voltage Ui	V	500
	Rated residual kugadzira uye	A	630
	kutyora simba I m
	Short-circuit current I c	A	4500/6000
	SCPD fuse	A	6000
	Nguva yekuzorora pasi peI n	s	<0.1
	Rated frequency	Hz	50/60
	Dhigirii rekusvibisa		2
MechanicaI	Upenyu hwemagetsi	t	4000
features	MechanicaI Iife	t	20000
	Mhosva yazvino chiratidzo		Ehe
	Dhigirii rekudzivirira		IP20
	Ambient tembiricha	C	Kubva -25C kusvika 40C
	(neavhareji yemazuva ese 35)
	Kuchengetedza tembiricha	C	Kubva -25C kusvika 70C

FAQ

Q 1. ndeipi nguva yekubhadhara? A. Tinobvuma TT, 30% dhipoziti uye 70% chiyero chinopesana nekopi yeBL

Q 2. inguva yekutumira sei?

A. kazhinji zvinotora mazuva makumi maviri nemashanu ekugadzirwa

Q 3. ndiudze mwero wepasuru?

A. Kazhinji mabhokisi, asiwo tinogona kuatakura maererano nezvaunoda.

Q 4.Ungabvuma kushandisa logo yedu?

A. Kana uine huwandu hwakanaka, hazvina dambudziko kuita OEM.

Q5. Ndinogona kutora mimwe mienzaniso?

A: Ehe, isu tinotsigira kutora sampuli tisati taisa odha. Ingonzwa wakasununguka kutaura nesu kana uine chero zvaunoda.

Q6. Uri yepakutanga Factory?

A: Hongu, tine fekitari yedu.

Q7. Iwe unogona sei kuve nechokwadi chemhando yezvigadzirwa?

A: Tichatenderana nezvinodiwa nenyika dzepasi rese kuti tiongorore zvinhu zvese tisati tabva kufekitari yedu. Bata suTinotenda nekuverenga kwako. Kana chero chigadzirwa chichizadzisa zvaunoda. Tinokugamuchirai kutitumira email kana neWechat uye WhatsApp.
