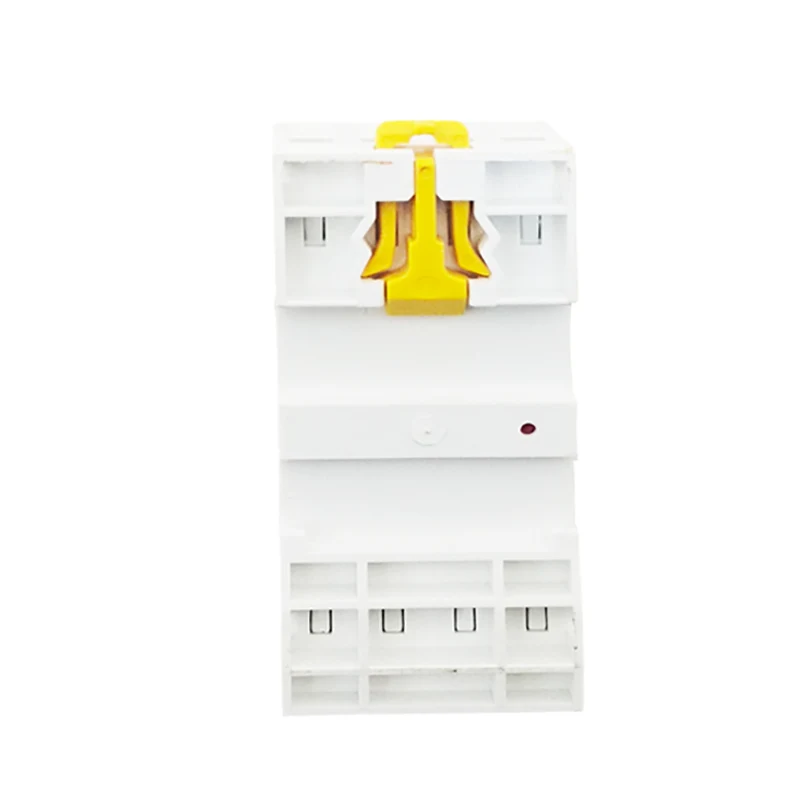

Imba AC Contactor

Iyo STH8-100 Series Herecs Econ Comm Colors inonyanya kugadzirirwa AC 50HZ (kana 60HZ), ine yakatarwa yekushandisa voltage kusvika 400V. Ivo vane yakarongedzwa kushanda zvazvino kusvika pa100a pasi peAC-7A SEAGE CAGORY uye kusvika 40A iri pasi peAC-7B yekushandisa chikamu. Aya maonetoni anoshandiswa kudzora akaderera kana zvishoma zvinhu zvekunyengedza mune zvekugara uye zvakafanana zvinoshandiswa, pamwe nekudzora mota mota. Chigadzirwa chinonyanya kushandiswa mudzimba, hotera, dzimba, zvivakwa zvehofisi, zvivakwa zveveruzhinji, nzvimbo dzekutenga, etc., kuti uwane eturmated control mabasa. Zviyero kutevedzera: Iec61095, GB / T17885.

Model:STH8-25

Send Inquiry

Product Description

Nyora	Contactor
Kuyera a	16	20	25	32	40	63	100
AIDS	Ehe
BCTIKISIVE Auxileary	Ehe
Bactc dzora auxileary na yero zvimedu	Ehe

Nyora					Upamhi mu9mm module

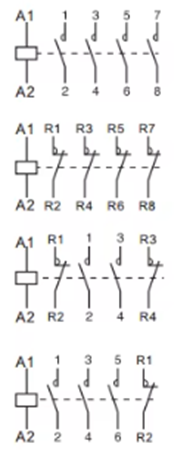

1p	Rating (ln) Ac-7a	Rating (ln) Ac-7a	Kutonga voltage (Vac) (50hz)	Kusangana
	16a	6a	24	1no	2
	20a	7a	110	1nc
	25a	9a	230
2p
	16a	6a	24	2no	2
	20a	7a	110	1no + 1nc
	25a	9a	230	2nc
	32a	12a	24	2no	4
	40a	18a	110	1no + 1nc
	63a	25a	230	2nc
	100a	_	24		6
			110	2no
			230
3p
	16a	6a	24	3no	4
	20a	7a	110	3nc
	25a	9a	230
	32a	12a	24	3no	6
	40a	18a	110	3nc
	63a	25a	230
4p
	16a	6a	24	4no	4
	20a	7a	110	4nc
	25a	9a	230	2no + 2nc 3no + 1nc
	32a	12a	24	4no	6
	40a	18a	110	4nc
	63a	25a	230	2no + 2nc 3no + 1nc
	100a	_	24	4no	12
			110
			230

Chimiro chikuru

Imba AC Contactor inowanzoenderana nezvikamu zvinotevera:

Kubata System: kusanganisira main mainatidziro uye exiliary contaces. Iyo huru yekuonana inoshandiswa kuvhura uye kutyora dunhu guru, iyo inowanzove ine yakakura yazvino iripo; Iyo yekubetsera kusangana inoshandiswa kutendeukira uye kutyora dunhu rekutonga, iyo ine madiki azvino.

Electromagnetic System: Iyo ine mhandara yesimbi, Armature uye Coil. Kana iyo Coil ichinge isingazivikanwe, iyo musimboti inogadzira munda wemagineti inokwezva iyo Armature uye inovhara maContal; Kana iyo coil ichinge yakashamiswa, munda wemagineti unonyangarika, iyo Armature inosunungurwa uye maContacs akaputsika.

Arc Kubhururuka Kwekudzima: Inoshandiswa kudzima iyo arc kana iyo maContacs ikabviswa, kudzivirira iyo arc kubva pakukonzera kukuvara kune vafambi.

Shell uye accessories: Iyo ganda rinoshandiswa kuchengetedza zvikamu zvemukati kubva pesvedzero yenzvimbo yekunze; Iyo accessories inosanganisira kukwidza mabhureki, terminals, nezvimwe, izvo zvinoshandiswa kuziva kuisirwa uye kushandisa wiring yeanoneta.

Nheyo yekuvhiya

Iko kunetswa kwekushanda kweAc Vashandi veimba kunoenderana neiyo nheyo yeElectromagnetic induction. Kana iyo Coil ichinge isingazivikanwe, iyo simbi musimboti inogadzira munda wemagineti inokwezva iyo Armature uye inovhara maContal; Kana iyo coil iri-inosimbiswa, munda wemagineti unonyangarika, iyo Armature inosunungurwa uye mafambisirwo anodzikiswa. Nekudzora simba uye de-kusimbisa kweiyo coil, kudzora kure uye kudzivirirwa kwematunhu emhuri kunogona kuzadzikiswa.

Technical parameter

Iyo huru technical parameter yemabonde aconesors inosanganisira yakarongedzwa voltage, yakatarwa yazvino, yakatarwa frequency, inobatanidza uye kutyora kugona uye zvichingodaro. Kusarudzwa kweaya ma paramita kunofanirwa kutsanangurwa maererano nemamiriro chaiwo edunhu reimba kuti ave nechokwadi chekushanda kwakajairika uye kushandiswa kwakachengeteka kwekutaura.

Rated Voltage: Inoreva kune iyo voltage level kana iyo contage kana iyo connector iyo inoshanda kazhinji.

Yakatemerwa Yazvino: Inoreva iyo yakakwira iripo iyo iyo connecor inogona kutsungirira kwenguva yakareba pasi peiyo yakavezwa voltage.

Rated Frequency: Iyo Frequency yeSower Swave Kana Iye Anonetsekana Anoshanda Kazhinji.

Kubatanidza uye kutyora kugona: Iyo yakakwira iripo iyo iyo contacor inogona kuvimbika yekubatanidza uye kupwanya pasi pemamiriro ezvinhu akataurwa.
