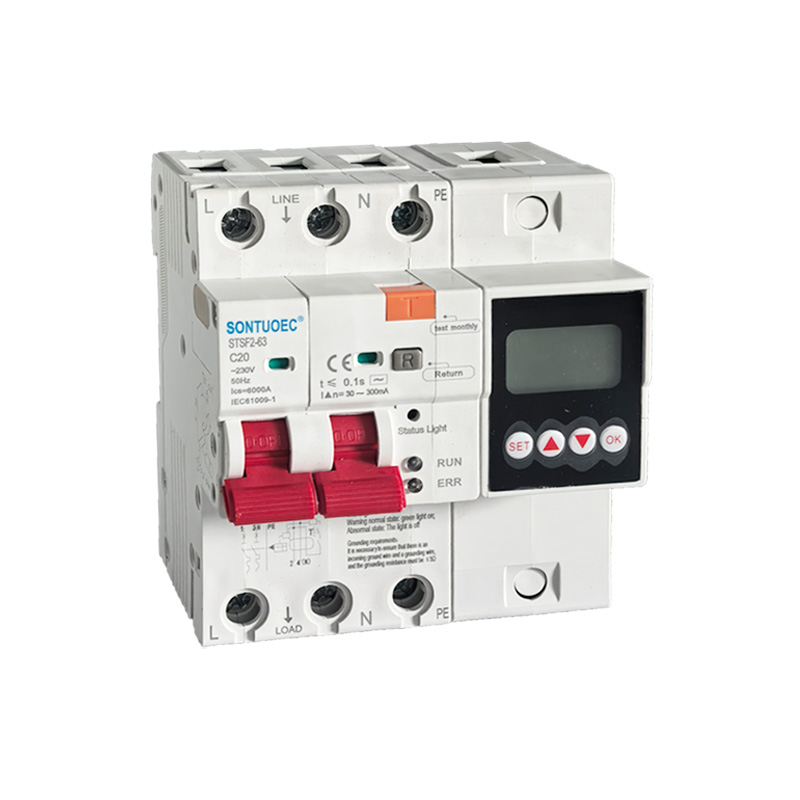

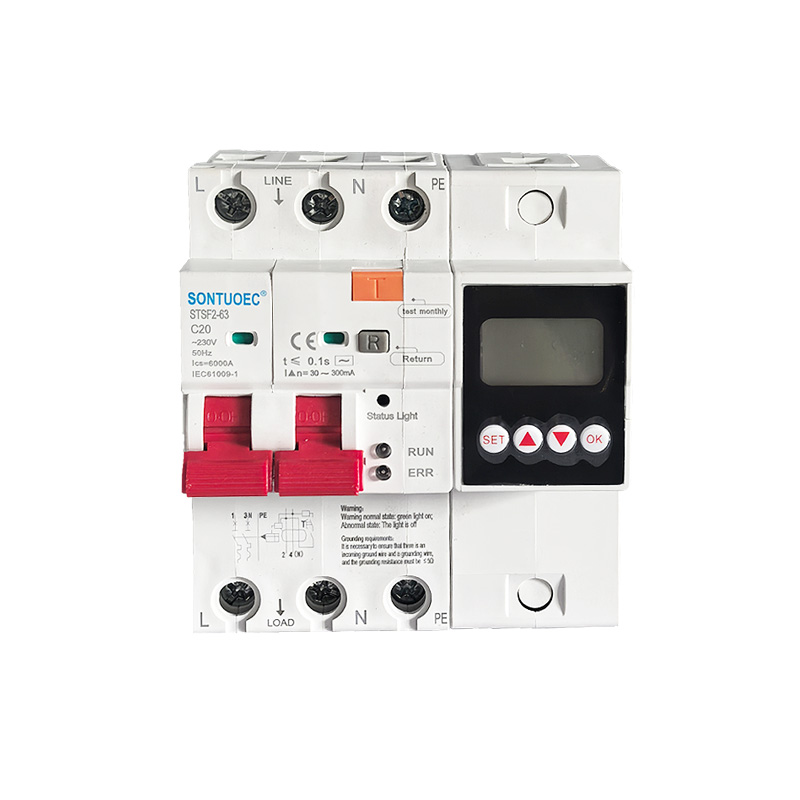

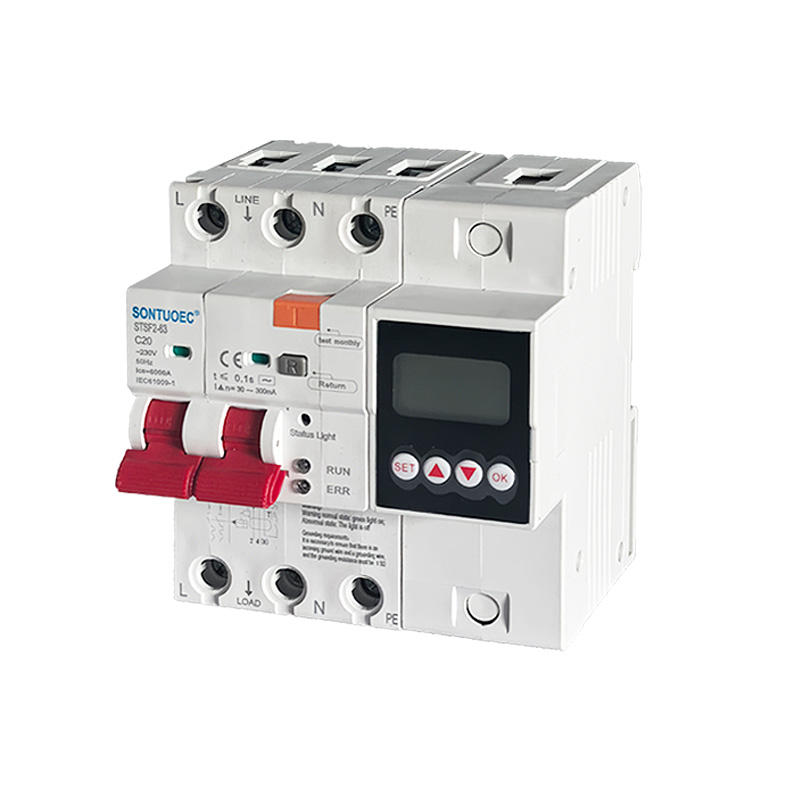

Intelligent kunyudza anti electric shock leakage protector 220V air circuit breaker

STSF2-63/100 100A 2p 4p Multifunctional RCBO inokodzera AC 50/60Hz, yakayerwa mudunhu rine voltage ye230V-400V uye yakayerwa ikozvino ye100A, kana munhu abatwa nemagetsi kana giredhi remagetsi rinodonha. Kana iyo leakage, overvoltage, uye undervoltage ichisvika pamitengo yakatarwa, yasara yazvino yedunhu breaker inogona kukurumidza kushanda munguva pfupi pfupi yenguva nekukurumidza kudzima magetsi. Kana tembiricha yekutarisa yeyakasara ikozvino yedunhu breaker inosvika pakukosha kwakaiswa, iyo yekutarisisa pasi waya haina kubatana. Kana yakabatana, chigadzirwa chinoburitsa alarm inonzwika kuchengetedza kuchengetedzwa kwevashandi nemidziyo yemagetsi, uye inogona kudzivirira Dzivirira kukuvadzwa kwemidziyo inokonzerwa nekuwedzeredza mugedhi remagetsi. Iine kuwandisa, kupfupi dunhu, kuvuza, overvoltage Undervoltage uye overtemperature ekudzivirira mabasa anogona zvakare kushandiswa kuvhara nekudzima zvigadziriso zvemagetsi pasi pemamiriro akajairwa. Lighting circuits, kunyanya akakodzera maindasitiri uye zvokutengeserana chiedza kugovera masisitimu. Chigadzirwa chine vhoriyamu diki, compact chimiro, uye zvirinani mutengo-unoshanda pane zvimwe zvakafanana zvigadzirwa. Iine chimiro chakanaka, High breaking capacity inoita kuti ive sarudzo yakanaka yekugovera simba repamba. Ichi chigadzirwa chinoenderana neGB/T 16917.1 uye IEC 61009-1 zviyero uye yakawana CE certification.

Model:STFS2-63

Send Inquiry

Product Description

ZVINOTAURWA:

Zvemagetsi features	Standard	Unit	IEC/EN 61009-1
	Mode		Electronic type
	Type(wave fomu repasi rinobuda rakanzwa)		AC
	Thermo-magnetic kusunungurwa maitiro		B,C,D
	Rated current ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Inogadziriswa
	Poles	P	1P+N, 3P+N
	Rated voltage Ue	V	AC 230, 400 (Inochinjika)
	Rated sensitivity I△n	A	30-300mA(30,100,300mA) Inogadziriswa
	Rated residual kugadzira uye kutyora simba l△m	A	500
	Yakatemerwa pfupi-yedunhu simba Icn	A	6000
	Nguva yekuzorora pasi peI△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulsewithstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage pa ind.Freq ye1min	kV	2
	Insulation voltage Ui	V	250
	Dhigirii rekusvibisa		2
Other	Pamusoro / pasi pekudzivirira kwemagetsi;	uye	Tembiricha Dziviriro ; Moto-alwarm nevamwe
Mechanical features	Upenyu hwemagetsi		4000
	Mechanical hupenyu		10000
	Fault current Indicator		EHE
	Dhigirii rekudzivirira		IP20
	Ambient tembiricha	ºC	-5 ~+40(Chishandiso chakakosha ndapota tarisa kune
	(neavhareji yezuva nezuva≤35ºC)	ºC	kururamisa tembiricha muripo)
	Kuchengetedza tembiricha	ºC	-25~+70
Installation	Terminal yekubatanidza mhando		Cable/Pin-type busbar/U-type busbar

	Terminal size kumusoro/pasi kwetambo	mm2	25
	Terminal size kumusoro/pasi kwetambo	AWG	18-5
	Terminal size kumusoro/pasi kwebhazi	mm2	25
	Terminal size kumusoro/pasi kwebhazi	AWG	18-3
	Mounting		PaDIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo
	Connection		Kubva kumusoro

AKAPONDERERA AIR TEMPERATURE:

1.The ambient air tembiricha haifaniri kuva yakaderera pane -5 1C, kwete yakakwirira kupfuura +40 C, uye avhareji yezuva nezuva kukosha haifaniri kudarika +35 C.

2. Altitude: Kukwirira kwenzvimbo yekuisa hakufaniri kudarika 2000m.

3.Atmospheric mamiriro

Mhepo yakachena, uye pahupamhi hwekushisa hwe +40 'C, hunyoro hwemhepo husina kukwirira Kupfuura 50%. Hunyoro hwepamusoro hwehukama hunobvumidzwa pane tembiricha yakaderera, senge pa+20 C;

Hunyoro hunyoro haufanire kudarika 90%. Nekuda kweapo neapo ane mwero condensation inokonzerwa nekushanduka kwetembiricha, Ngwarira inofanira kubhadharwa pakutora matanho akakodzera.

4. Kuiswa Category Kuisa mapoka ari lI uye III

Ikozvino uye Nhamba yePoles

100A: Izvi zvinoratidza kuti RCBO yakatarwa pa100 amps. Chiyero chemazuva ano ndicho chinonyanya kukosha chemazuva ano icho muparadzi wedunhu anogona kutakura nguva dzose pasina kukonzera kupisa kana kukanganisa.

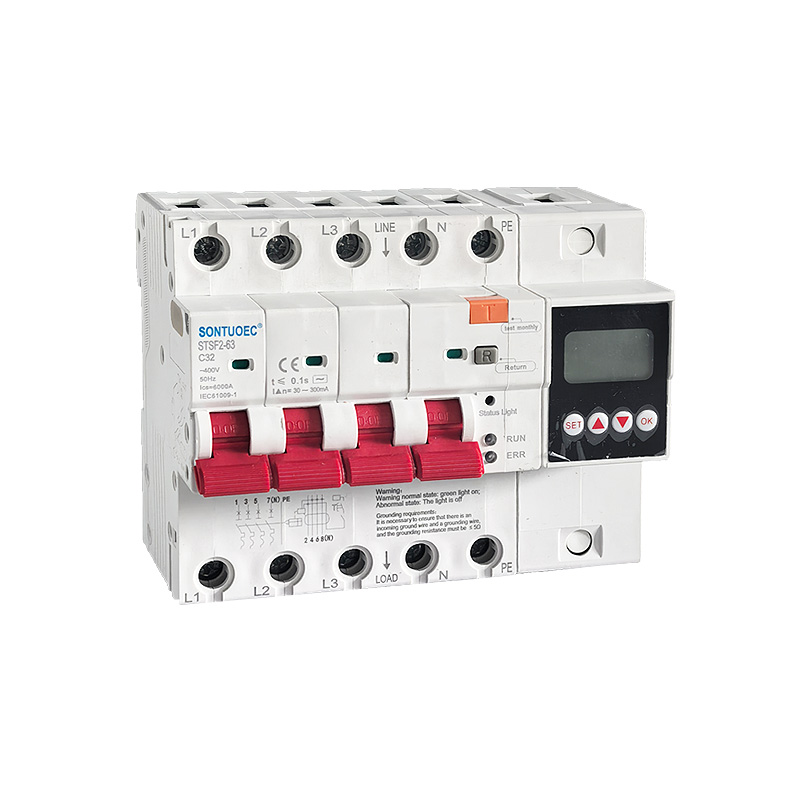

2p, 4p: I "p" pano inomiririra nhamba yemapuranga, kureva, nhamba yezvikamu zvedunhu izvo muparadzi wedunhu anogona kubatanidzwa. 2p inoreva kuti muparadzi wedunhu anogona kubatanidzwa nezvikamu zviviri zvedunhu (kazhinji Fire neZero), nepo 4p inoreva kuti inogona kubatanidzwa kune mana edunhu nhanho (kazhinji matatu-phase Fire neZero).

Multifunctional

Multifunctional inoratidza kuti iyi 100A 2p 4p Multifunctional RCBO yakagadzirirwa mabasa akasiyana-siyana ekudzivirira. Pamusoro pekuremerwa kwekutanga uye kuchengetedzwa kwepfupi-yedunhu, inogona zvakare kupa kudzivirirwa kwekudonha, undervoltage dziviriro, overvoltage kudzivirira, zvichingodaro. kudzivirira tembiricha，Mvura ingress alarm，Adjustable current uye voltage.Idzi dziviriro dzinobvumira RCBO kuti ipe dziviriro yakazara yemaseketi nemidziyo.

Yambiro!

Yambiro yakajairika: green light on;

Chimiro chisina kujairika: Chiedza chakadzimwa

Grounding zvinodiwa:

Izvo zvinodikanwa kuve nechokwadi chekuti kune inopinda pasi waya uye waya yepasi, uye kupikisa kwepasi kunofanira kunge kuri s 5Q!

Application Scenario

Sezvo RCBO ine mabasa akasiyana-siyana ekudzivirira, inowanzoshandiswa mumaseketi anoda kuchengetedzwa kwemunhu, semaseketi emagetsi ekuvheneka, simba risina simba, uye midziyo yemagetsi mudzimba nenzvimbo dzeveruzhinji. Nzvimbo idzi dzinowanzo onekwa nemvura uye hunyoro, izvo zvinogona kukonzera tsaona yekudonha nyore nyore. Pamusoro pezvo, RCBO inogona zvakare kushandiswa mumaindasitiri emagetsi masisitimu uko kuchengetedza kwevanhu kuri chinhu chinodiwa, senge peripheral light control circuits, radar systems, uye geological exploration instruments.
