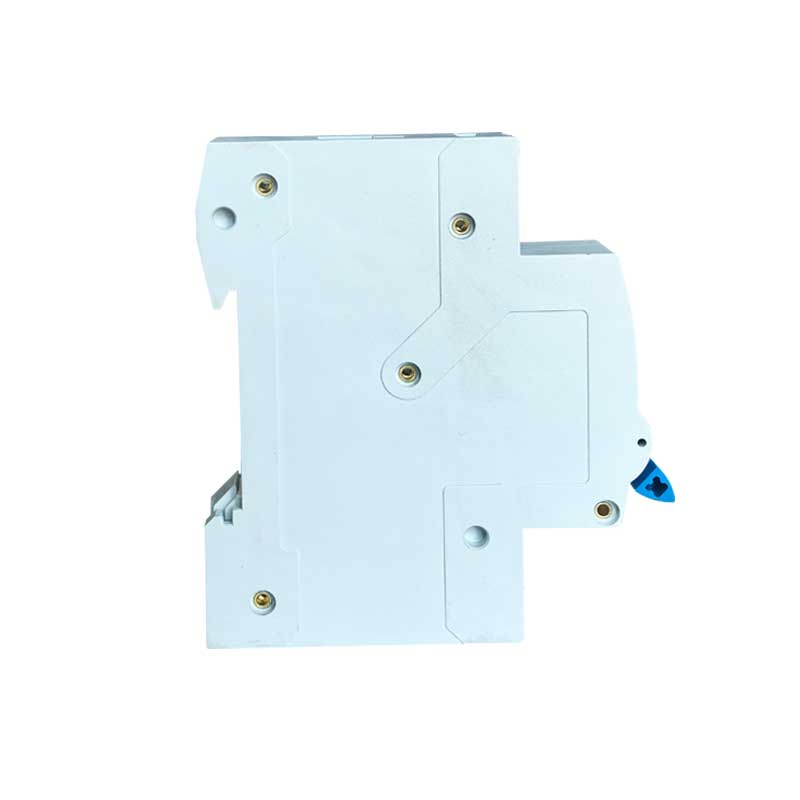

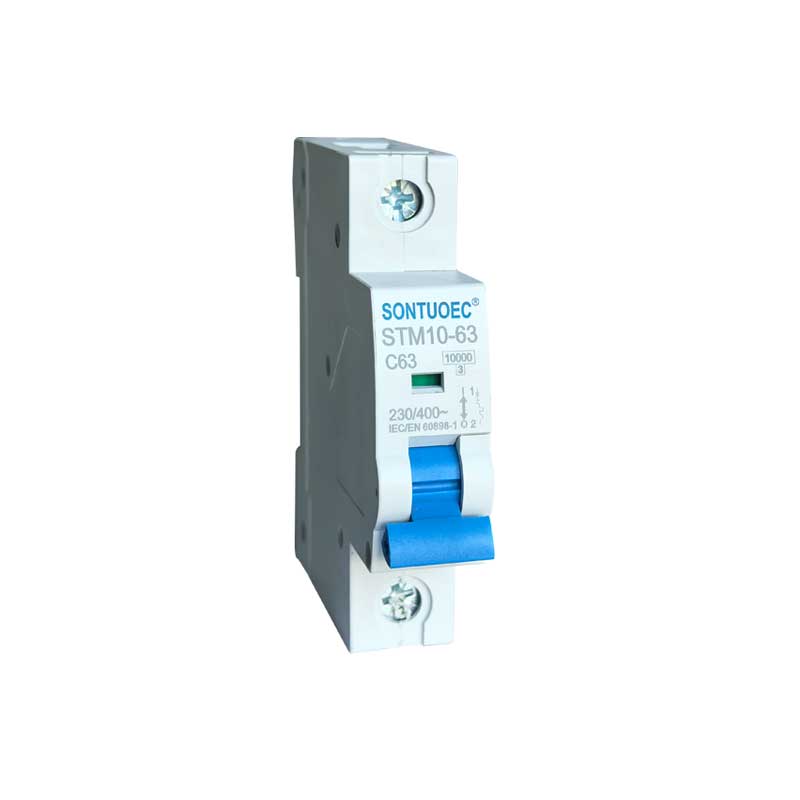

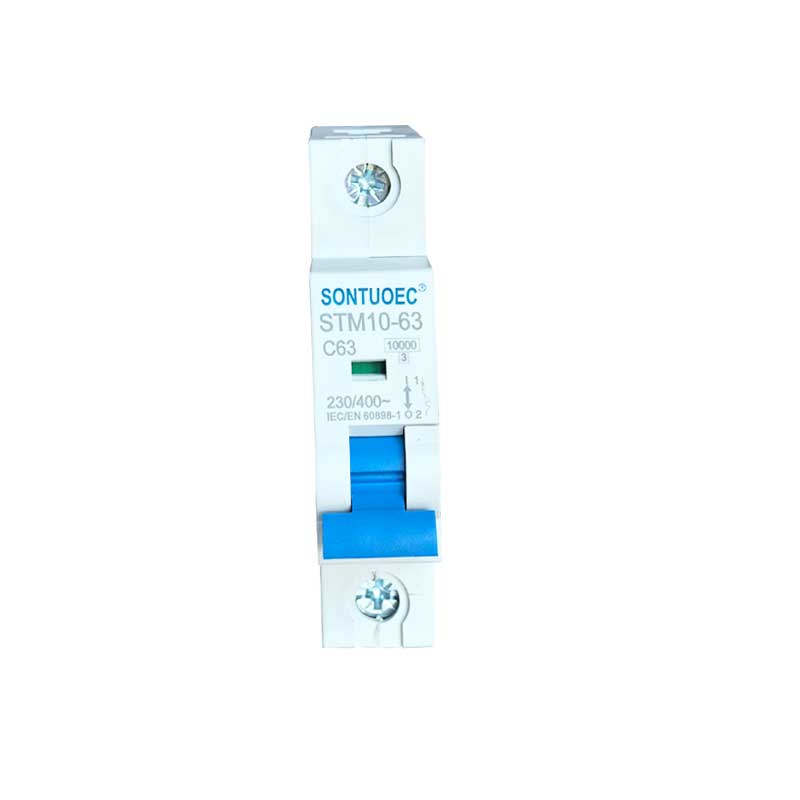

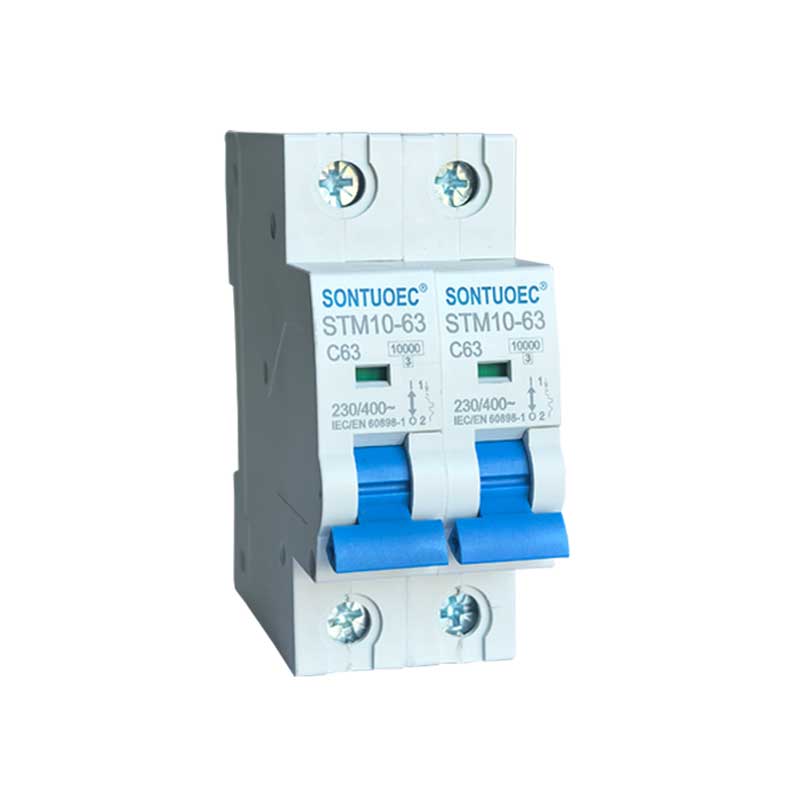

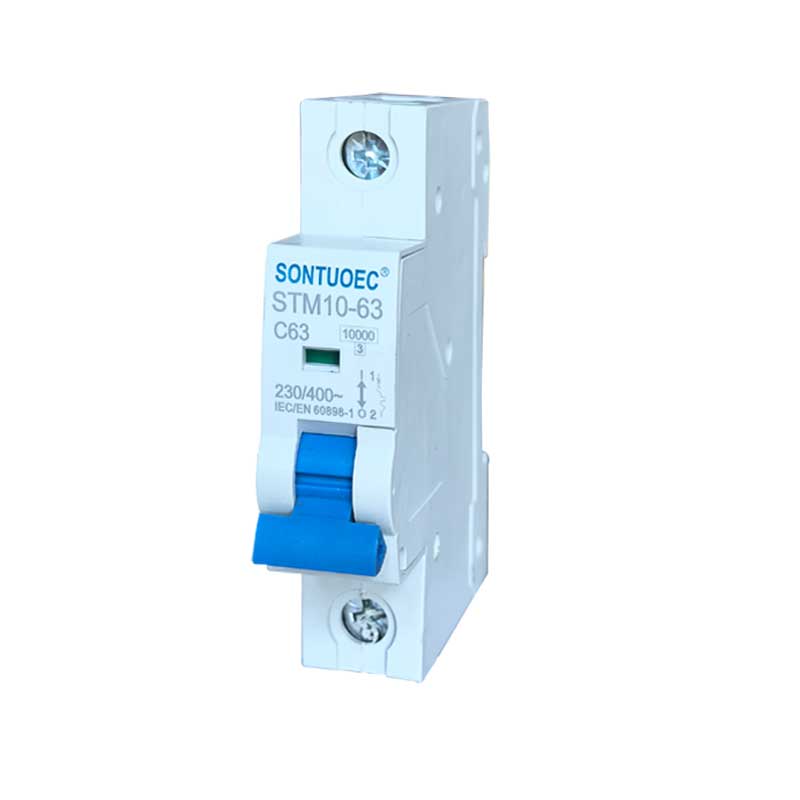

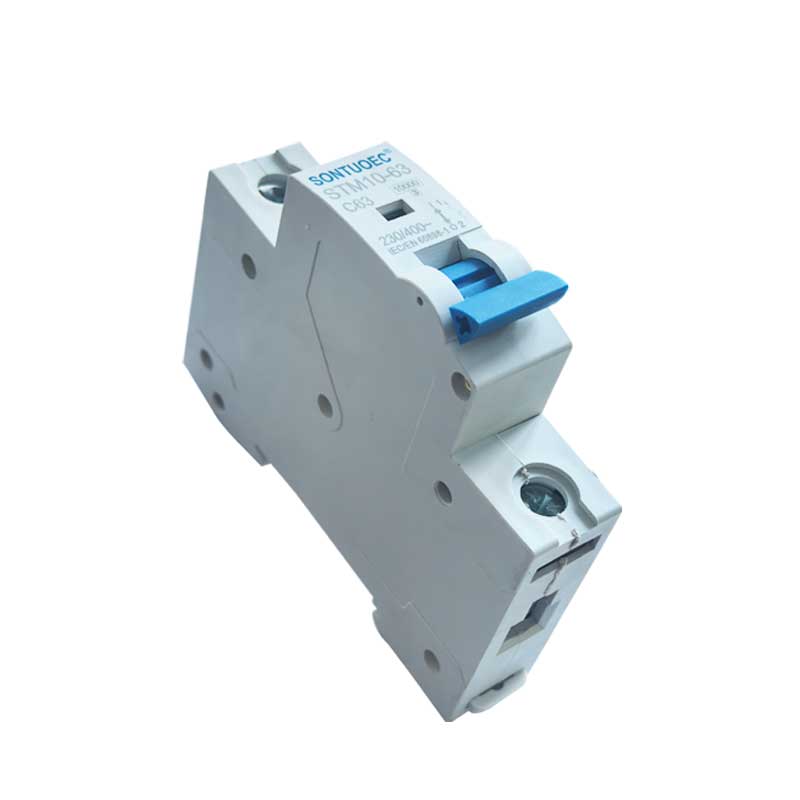

Sontuoec Factory Direct Sale MCB Stm10-63 Series 6ka Miniature Circuit Breaker

SONTUOEC ndeimwe yevashambadziri veChinese / vagadziri vane hunyanzvi mukugadzirwa kwemidziyo midiki yakasiyana-siyana yemagetsi STM10-63 Series high breaking miniature circuit breaker ine zvimiro zvechimiro chepamberi, kuita kwakavimbika, kutyora kugona kwepamusoro, kutaridzika kwakanaka uye goko rayo uye zvikamu zvinogadzirwa nezvinhu zvinoramba, yakasimba-inodzoreredza moto. Inokodzera kusimba system ye50 kana 60 frequency, Ue 400V uye pazasi, Ui 63A uye pazasi. Inonyanya kushandiswa pakuvaka hofisi, pekugara, yekuvhenekesa, kugovera simba uye kuwandisa uye kupfupika kwedunhu kudzivirira kwemidziyo. Kazhinji, inogonawo kushandiswa seyo isingawanzo kufambisa yemagetsi system. Inoenderana nezviyero IEC60898.1 uye GB10963.1

Model:STM10-63

Send Inquiry

Product Description

Zvinodiwa:

	Standard		IEC/EN 60898-1
Zvemagetsi	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63A
features	Poles	P	1,2,3,4
	Rated voltage Ue	V	AC 230, 400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	3000, 4500, 6000
	Rated impulse inomira voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage pa ind.Freq.for 1 min	Kv	2
	Dhigirii rekusvibisa		2
	Thermo-magnetic kusunungurwa maitiro		B,C,D
Mechanical	Upenyu hwemagetsi	t	4000
features	Mechanical hupenyu	t	10000
	Dhigirii rekudzivirira		IP20
	Reference tembiricha yekuseta	ºC	30
	ye thermal element	ºC	30
	Ambient tembiricha	ºC	-5 ~+40(Chishandiso chakakosha ndapota tarisa kune
	(neavhareji yezuva nezuva ≤35ºC)	ºC	kururamisa tembiricha muripo)
	Kuchengetedza tembiricha	ºC	-25~+70
Installation	Terminal yekubatanidza mhando		Cable/Pini-mhando yebhazi
	Terminal size kumusoro/pasi kwetambo	mm2	25
	Terminal size kumusoro/pasi kwetambo	AWG	3月18日
	Therminal size kumusoro/pasi kwebusbar	mm2	25
	Therminal size kumusoro/pasi kwebusbar	AWG	3月18日
	Kuomesa torque	N*m	2
	Kuomesa torque	In-lbs	18
	Mounting		paDIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo
	Connection		Kubva kumusoro uye pasi

Mabasa makuru eSTM10-63 Miniature Circuit Breaker

1.Kudzivirirwa kwekudzivirira: Kana ikozvino munharaunda inodarika kukosha kwakatarwa kweMCB, STM10-63 Miniature Circuit Breakerwill inongobvisa dunhu mukati menguva yakatarwa yekudzivirira dunhu nemichina kubva pakupisa.

2.Short-circuit kudzivirira: Kana pfupi-circuit ikaitika munharaunda, STM10-63 Miniature Circuit Breakerwill inogura dunhu pakarepo kudzivirira kupfupika kwemhepo kubva pakukuvadza dunhu nemichina.

3.Kudzivirirwa kwekudzivirira (mamwe maMCB ane basa iri): kune MCBs nekudzivirira kwekudzivirira, kana pane kubuda mukati medunhu, STM10-63 Miniature Circuit Breakerwill inokurumidza kugura dunhu kuti idzivirire kuchengetedzwa kwevanhu.

Nheyo yekushanda kweMCBs

MCBs kazhinji ine inopisa magineti kana yemagetsi rwendo detector mukati, iyo inoshandiswa kuona shanduko mune yazvino mudunhu. Kana yazvino ikasajairika, anorova anokonzeresa nzira yeMCB, zvichiita kuti STB1-63 Miniature Circuit Breakerto idimbure dunhu.

1.Thermal magnetic striker: Inoshandisa kupisa kunogadzirwa kana ikozvino inopfuura nepa conductor kuti iite kugumburwa. Kana magetsi akakurisa, conductor inopisa, zvichiita kuti bimetal iri mukati me thermal magnetic striker ikotame, zvobva zvaita kuti mushini wekugumburwa.

2.Electronic striker: Inoshandisa zvinhu zvemagetsi kuona kuchinja kwazvino uye kutonga chiito chekugadzirisa nzira. Pakaonekwa kuti pane abnormal current, mugadziri wemagetsi anotumira chiratidzo kunzira yekugumburwa kuti idimbure dunhu.

Mamiriro ekushandisa eMCB

MCBs anoshandiswa zvakanyanya mumagetsi masisitimu munzvimbo dzekugara, dzekutengesa uye dzemaindasitiri kuchengetedza maseketi uye midziyo kubva mukukuvadzwa kunokonzerwa neabnormal currents. Vanowanzoiswa mumabhokisi ekugovera, mabhodhi emagetsi kana kudzora makabati uye anoshandiswa sechishanduko chikuru kana kushandura bazi redunhu.

Kusarudzwa uye Kuiswa kweMCBs

1.Selection: Paunosarudza MCBs, unofanirwa kufunga nezvezvinhu zvakadai seyero yakarongerwa yedunhu, voltage level, maitiro ekudzivirira, uye kana kuchengetedzwa kwekudonha kunodiwa. Izvo zvakakoshawo kuve nechokwadi chekuti yakasarudzwa STB1-63 Miniature Circuit Breaker inopindirana nemagetsi emunharaunda kuchengetedza zviyero nemirairo.

2.Kuisa: Iyo STB1-63 Miniature Circuit Breaker inofanira kuiswa munzvimbo yakaoma, inofefetera isina magasi anoparadza uye ive nechokwadi kuti yakabatanidzwa nemazvo uye zvakachengeteka. Panguva yekuisa, mitemo yakakodzera yekuchengetedza magetsi uye maitiro ekushanda anofanirwa kucherechedzwa.
