Stls-2(Cjx2) Series Mechanical Interlocking Contactor

Stls-2(Cjx2) Series Mechanical Interlocking Contactor inokodzera kushandiswa mumasekete kusvika kune yakayerwa voltage 660V AC 50Hz, yazvino 620A, yekushandurwa kudzora mota. Iyi mechanical interlocking device inovimbisa kuonana shanduko yeaya maviri anochinjika macontactor. Iyo inoenderana neIEC60947-4-1 Maitiro.

Model:STLS-2(CJX2)

Send Inquiry

Product Description

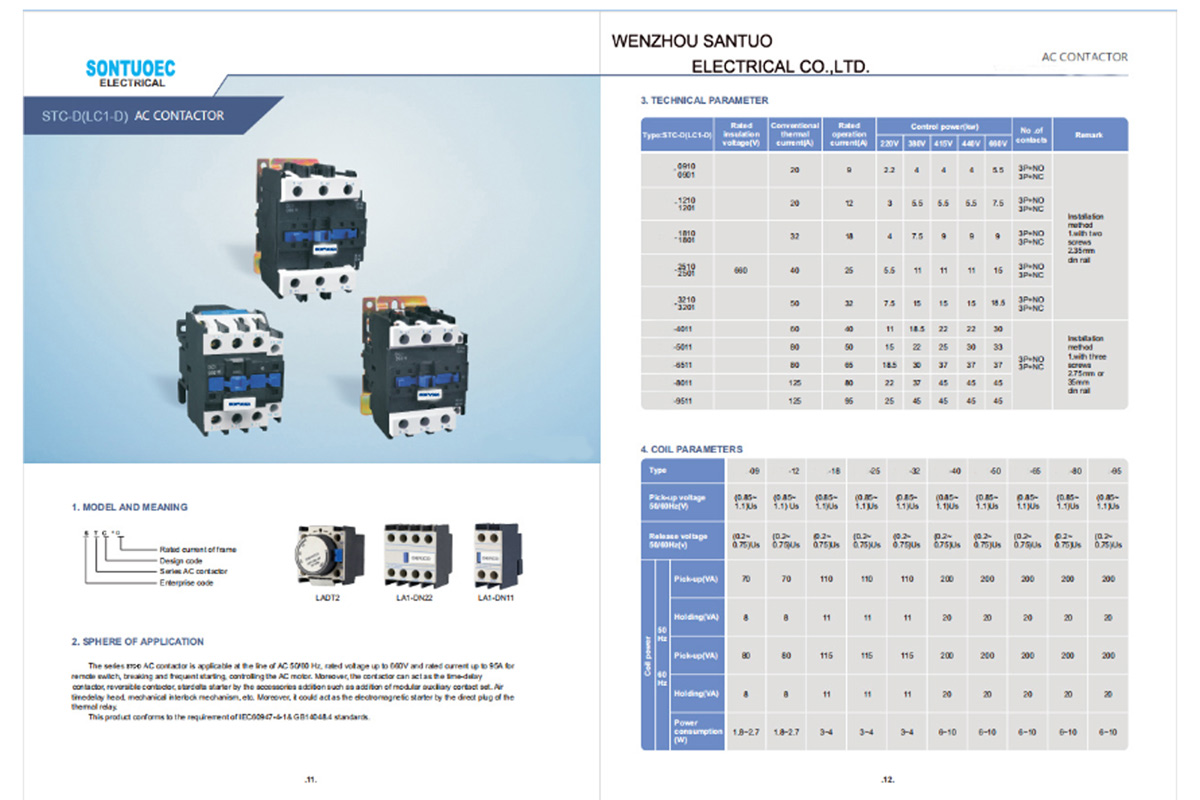

Type		STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2
		9	12	18	25	32	40	50	63	80	95
									60
Rated insulatio voltage		660	660	660	660	660	660	660	660	660	660
commonal thermal		20	24	32	40	50	60	75	80	110	125
current		20	24	32	40	50	60	75	80	110	125
Rated kushanda		9	12	16	25	32	40	50	63	80	95
current		9	12	16	25	32	40	50	63	80	95
controlled	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
simba (kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Cherechedza		Kuiswa kwe					Kuiswa kwe
		relays anogona kushandisa screws maviri					relays anogona matatu
		uye zvakare shandisa iyo 35mm					screws uye zvakare shandisa iyo
		kuisa njanji					75mm kana 35mm kuiswa
							njanji

Chimiro uye maitiro

Chimiro:

3P AC Contactor kazhinji ine electromagnetic system (kusanganisira coil, musimboti, nezvimwewo), yekubata system (inosanganisira huru yekubata uye yekubatsira kubata), arc yekudzima mudziyo uye goko uye zvimwe zvikamu. Pakati pavo, iyo huru yekubata inoshandiswa kutakura yakakwira ikozvino, uye iyo yekubatsira yekubata inoshandiswa kuona kutapurirana uye mhinduro yekudzora masaini.

Features:

Iine matatu akazvimirira ekubatika, anogona kudzora matatu-chikamu simba uye imwe zero mutsara panguva imwe chete.

Iyo yekusangana system inogadzirwa nemhando yepamusoro zvinhu zvine conductivity yakanaka uye kupfeka kuramba.

Iyo electromagnetic system ine simba rakakwana rekukweva rekuita zvakavimbika uye kusunungura vanobatika.

Iyo arc yekudzima mudziyo inogona kunyatso kudzima iyo arc inogadzirwa kana maconta akadzimwa, kudzivirira vanobatika kubva mukukuvadzwa.

Stls-2(Cjx2) Series Mechanical Interlocking Contactor inokodzera kushandisa mumaseketi iyo yakayerwa voltage kusvika ku660V AC 50Hz kana 60Hz, yakayerwa ikozvino kusvika 95A, kugadzira & kutyora, kazhinji kutanga & kudzora iyo AC mota. Yakasanganiswa neiyo yekubatsira yekubatanidza block, timer kunonoka & muchina-yekubatanidza mudziyo nezvimwe, inova inononoka yekubata, mechanic inopindirana yekubatanidza, nyeredzi-delta yekutanga. Iine thermal relay, inosanganiswa kuita electromagnetic starter. Iyo Contactor inogadzirwa maererano neIEC 60947-1.

Nheyo yeKushanda

Kana iyo coil ye3P AC Contactor yasimbiswa, iyo musimboti wesimbi inogadzira magineti uye inokwevera iyo yekubatanidza system kuvhara, nekudaro ichibatanidza matatu-chikamu magetsi uye zero waya. Kana iyo coil ikabviswa simba, musimboti unorasikirwa nemagineti uye iyo yekubatanidza system inopatsanurwa pasi pechiito chechitubu, nekudaro ichibvisa iyo yechitatu-chikamu magetsi kubva kune zero mutsara. Nenzira iyi, iyo 3P AC Contactor inogona kuona kure kure kutonga kwemagetsi.

Application Scenarios

3P AC Contactor inoshandiswa zvakanyanya mumagetsi akasiyana-siyana anoda kudzora matatu-chikamu simba uye imwe zero mutsara panguva imwe chete, yakadai se:

Indasitiri otomatiki munda: inoshandiswa kudzora mota kutanga, kumisa uye kudzosera kumashure mashandiro.

Simba system: inoshandiswa kuona kure kure uye kuchengetedza kwesimba system.

Kuvaka otomatiki: inoshandiswa kudzora kutanga uye kumira kwemwenje, air conditioning uye zvimwe zvishandiso.
