Zvigadzirwa > Circaket breaker > Reserial Cortit Breaker neDziviriro Yakawanda > Stro6-40 Circuit Breaker DIN Rail Type Kuisa RCBO

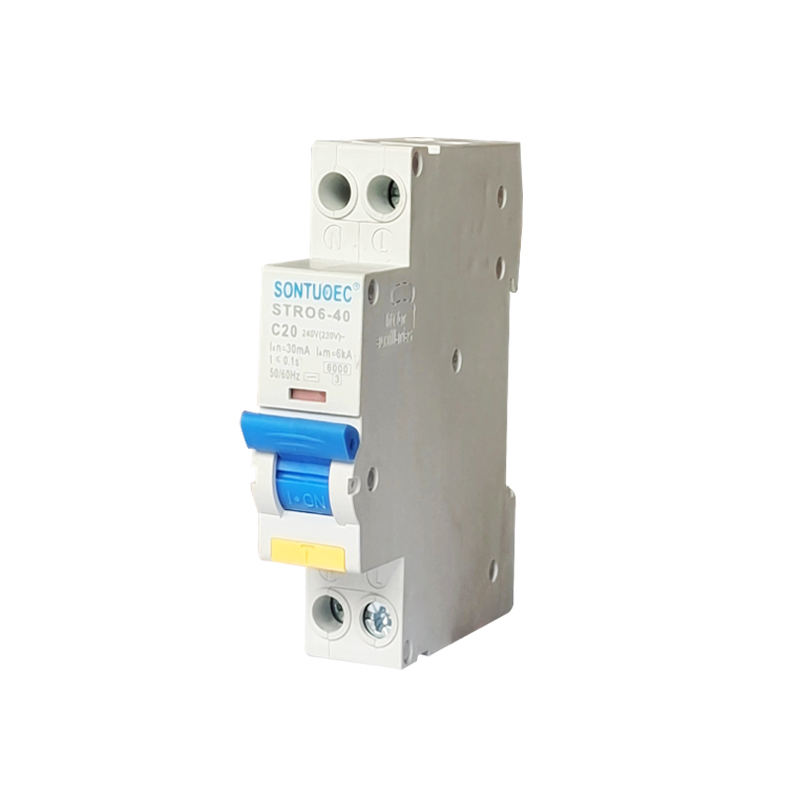

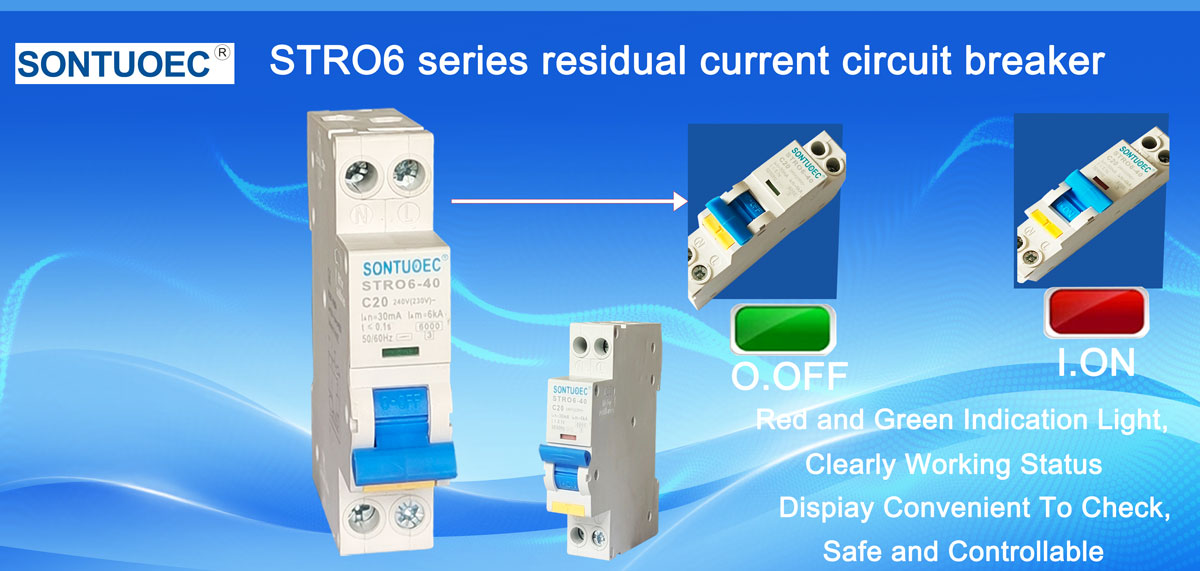

Stro6-40 Circuit Breaker DIN Rail Type Kuisa RCBO
SONTUOEC mumwe wevatengesi nevagadziri muChina. Iyo Stro6-40 Circuit Breaker DIN Rail Type Kuisa RCBO inoteerana neIEC61009 chiyero. Njanji yakaiswa RCBO yeiyi STRO6-40 yedunhu inotyora ishanduko mune yasara yazvino yedunhu breaker wedunhu, inonyanya kushandiswa kudzivirira munhu wega magetsi kuvhunduka uye kupa kuwandisa, kupfupi dunhu uye kumwe kuchengetedzwa kwemitsara nemidziyo.
Model:STRO6-40
Send Inquiry
Product Description
| Sandard | IEC/EN61009 | ||
| Magetsi zvinhu | Type(wave chimiro chekudonha kwepasi kwakanzwika) | Electro-magnetic mhando, mhando yemagetsi | |
| Rated current In | A | A,AC | |
| Poles | P | 2,4 | |
| Rated voltage | V | AC 240/415 | |
| Rated Current : | 6A,10,16,20,25,32,40A | ||
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual kugadzira uye | A | 630 | |
| kutyora simba I△m | |||
| Short-circuit current I△c | A | 6000 | |
| SCPD fuse | A | BitmapBitmapBitmapBitmap
|
|
| Rated frequency | Hz | 50/60 | |
| Dhigirii rekusvibisa | 2 | ||
| Mechanical features | Zvemagetsi hupenyu | t | 4000 |
| Mechanical hupenyu | t | 10000 | |
| Dhigirii rekudzivirira | IP20 | ||
| Ambient tembiricha | ºC | -25~+40 | |
| (neavhareji yezuva nezuva ≤35ºC) | |||
| Kuchengetedza tembiricha | ºC | -25~+70 | |
| Installation | Terminal mhando yekubatanidza | Cable/U-mhando busbar/pini-mhando bhasikoro | |
| Terminal size kumusoro/pasi kwetambo | mm2 | 25 | |
| AWG | 18-3 | ||
| Terminal size kumusoro/pasi kwebhazi | mm2 | 25 | |
| AWG | 18-3 | ||
| Kuomesa torque | N*m | 2.5 | |
| In-lbs | 22 | ||

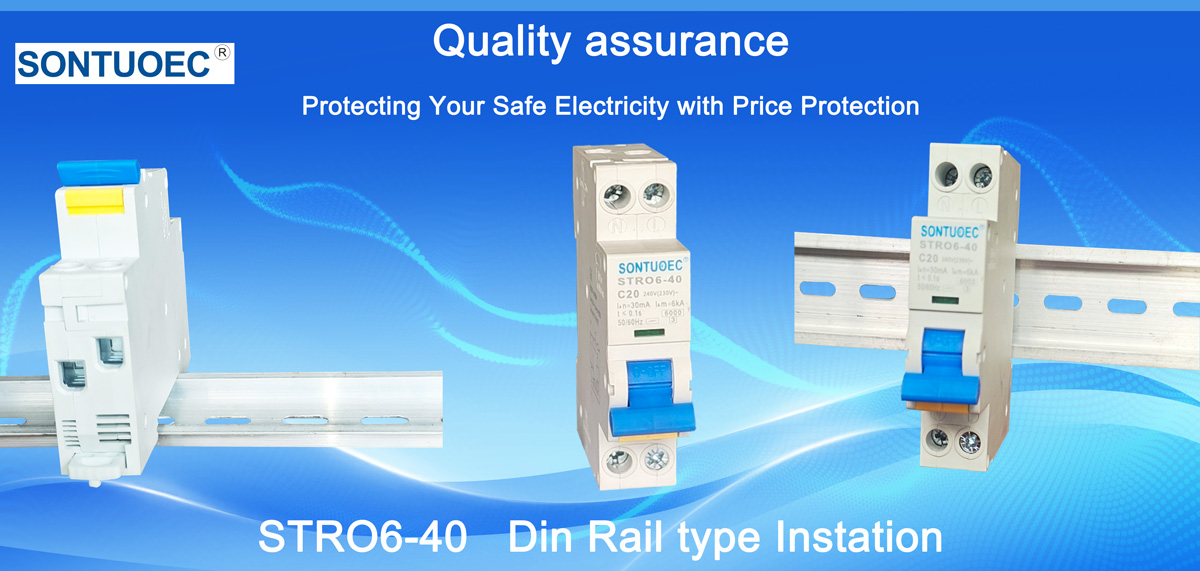

| Mounting | On DIN njanji EN 60715(35mm) nenzira yekukurumidza clip mudziyo | ||
| Connection | Kubva kumusoro uye pasi | ||
Stro6-40 Circuit Breaker DIN Rail Type Kuisa RCBO

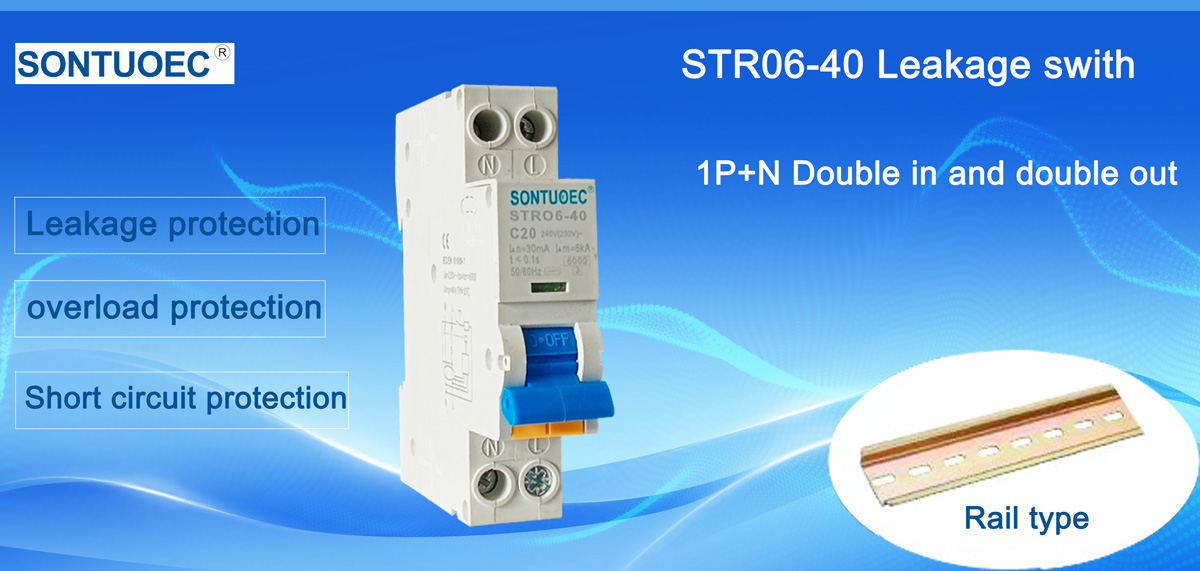

Product Over View:
1. Ipa dziviriro pakukanganisa kwenyika / kuvuza ikozvino uye basa rekuzviparadzanisa nevamwe
2. High short-circuit current inomira simba
3. Inoshanda kune terminal uye pini / forogo mhando busbar connection
4. Yakashongedzerwa neminwe yakachengetedzwa yekubatanidza zviteshi
5. Bvisa otomatiki dunhu kana kutadza kwepasi / kuvuza kwazvino kuchiitika uye kudarika kunzwisiswa kwakayerwa.
6. Kuzvimiririra kwemagetsi uye mutsara wemagetsi, uye pasina kupindira kwekunze, kushanduka kwemagetsi.
FAQ
Q 1. ndeipi nguva yekubhadhara?
A. Tinobvuma TT, 30% dhipoziti uye 70% chiyero chinopesana nekopi yeBL
Q 2. inguva yekutumira sei?
A. kazhinji zvinotora mazuva makumi maviri nemashanu ekugadzirwa
Q 3. ndiudze mwero wepasuru?
A. Kazhinji mabhokisi, asiwo tinogona kuatakura maererano nezvaunoda.
Q 4.Ungabvuma kushandisa logo yedu?
A. Kana uine huwandu hwakanaka, hazvina dambudziko kuita OEM.
Q5. Ndinogona kutora mimwe mienzaniso?
A: Ehe, isu tinotsigira kutora sampuli tisati taisa odha. Ingonzwa wakasununguka kutaura nesu kana uine chero zvaunoda.
Q6. Uri yepakutanga Factory?
A: Hongu, tine fekitari yedu.
Q7. Iwe unogona sei kuve nechokwadi chemhando yezvigadzirwa?
A: Tichatenderana nemhando dzepasi rose kuti titarise zvinhu zvese tisati tabva mufekitori yedu.
