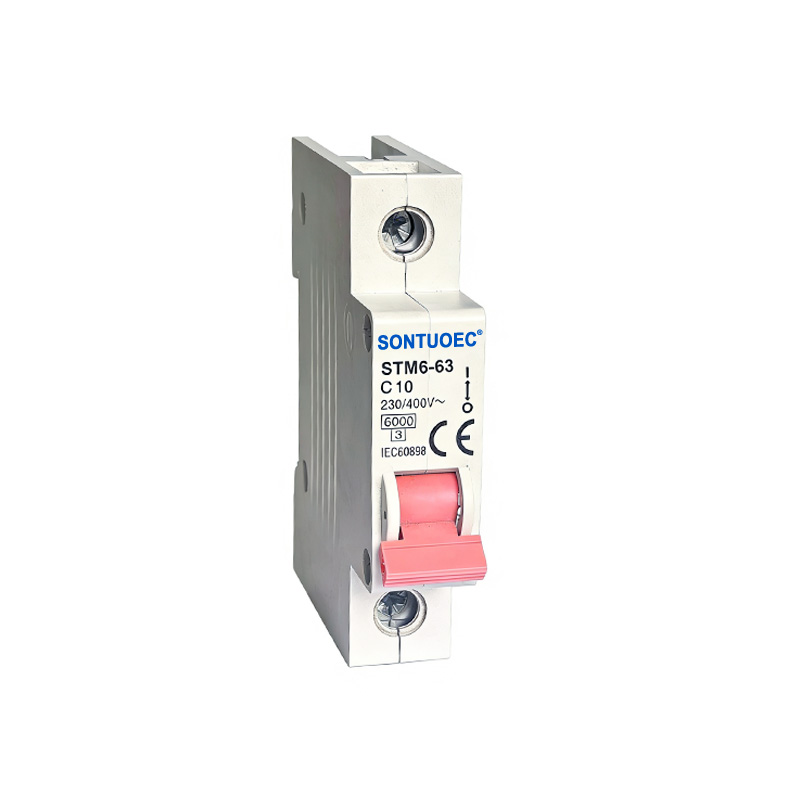

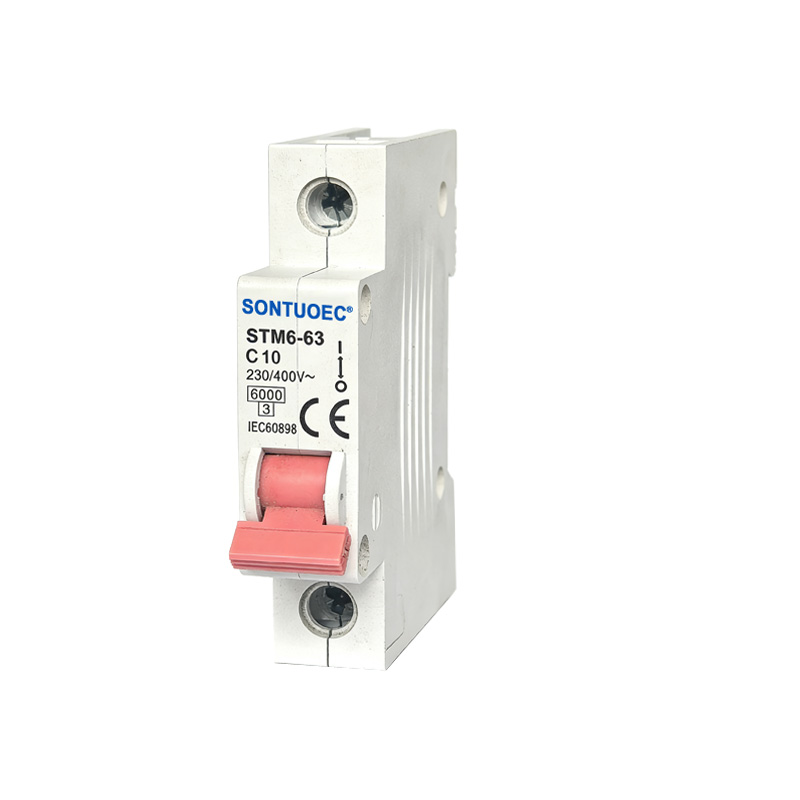

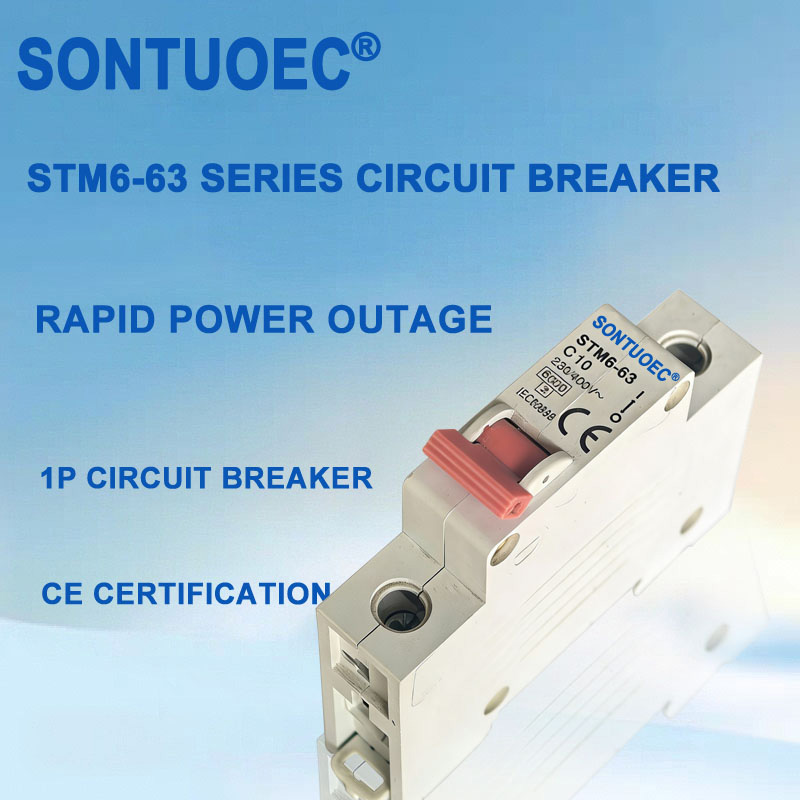

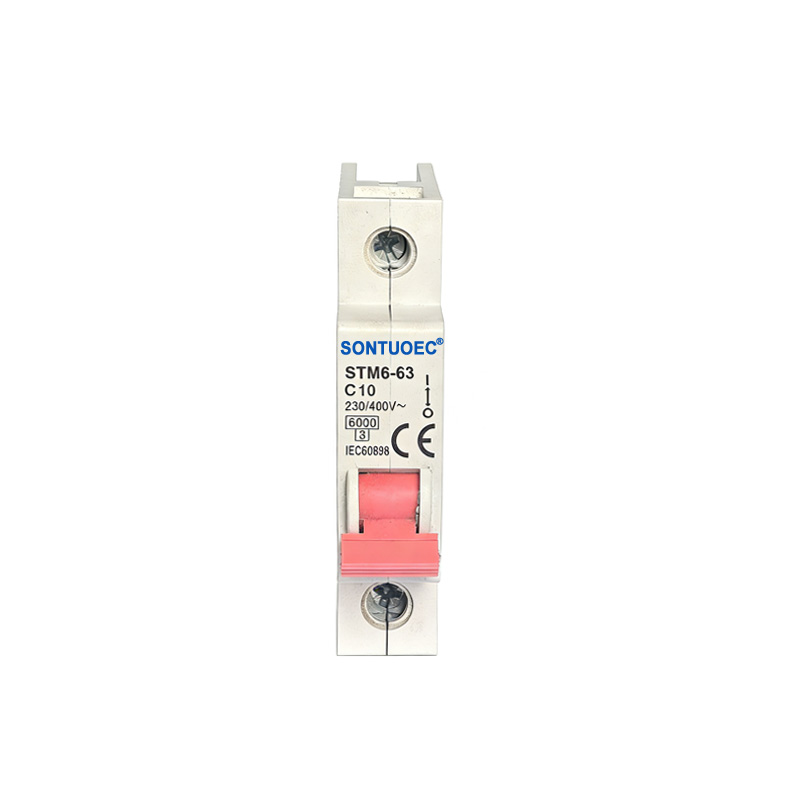

Sontuoec Stm6-63 6ka Miniature Circuit Breaker 230V MCB

SONTUOEC ndomumwe wevatengesi/vagadziri vekuChina vane hunyanzvi mukugadzira midziyo midiki yakasiyana-siyana yemagetsi STM6-63 yakatevedzana yakakwirira breaking capacity mini circuit breaker inoshandiswa muAC 50/60Hz, yakayereswa voltage ye230V. 3, 4 poles 400V, yakayerwa ikozvino kusvika ku63A yekudzivirira yakawandisa uye yepfupi-circuit pamwe nekuchinja kusingawanzoitiki mumamiriro ezvinhu akajairika.Inoshandiswa zvakanyanya kumaindasitiri, ezvekutengesa uye emhuri.Chigadzirwa ichi chinoenderana neIEC60898 standard.

Model:STM6-63

Send Inquiry

Product Description

Zvinodiwa:

Nzvimbo Yekwakabva:	Liushi,ueqing,Wenzhou,Zhejiang,China
Zita reBrand:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Product Name:	Miniature Circuit Breaker / MCB
Type:	Mini
Model Number:	STM6-63
Yakarongerwa Short Circuit Capacity lcu (V)	B,C,D
Rated Voltage:	230V/400VAC
Yakatemerwa Zvazvino:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Breaking Capacity:	6KA
Rated Frequency:	50/60Hz

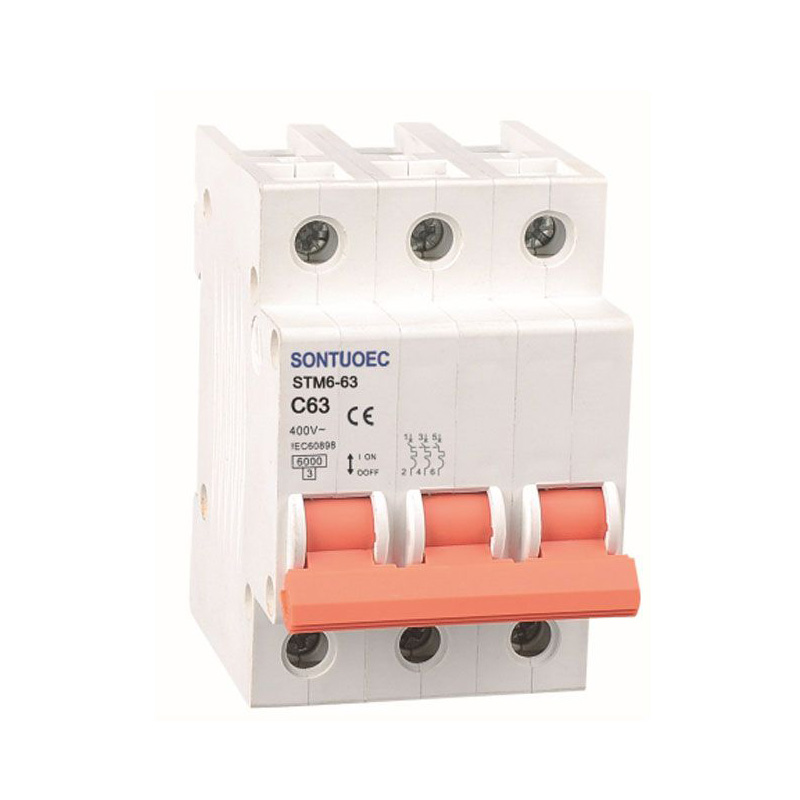

Nhamba yePoles:	1P, 2P, 3P,, 4P
Altitude:	≤2000m
Ambience Temperature:	-5 ~ 40ºC
Upamhi:	18mm/Panda
Standard:	IEC60898, GB10963
Dziviriro Type:	overload dziviriro, pfupi dunhu kudzivirira
Tripping Type:	thermal type
Installment:	TH 35mm din njanji
Wiring Capacity:	≤25mm²
Max Operation Frequency:	1A-32A, 240 40A-63A, 120
