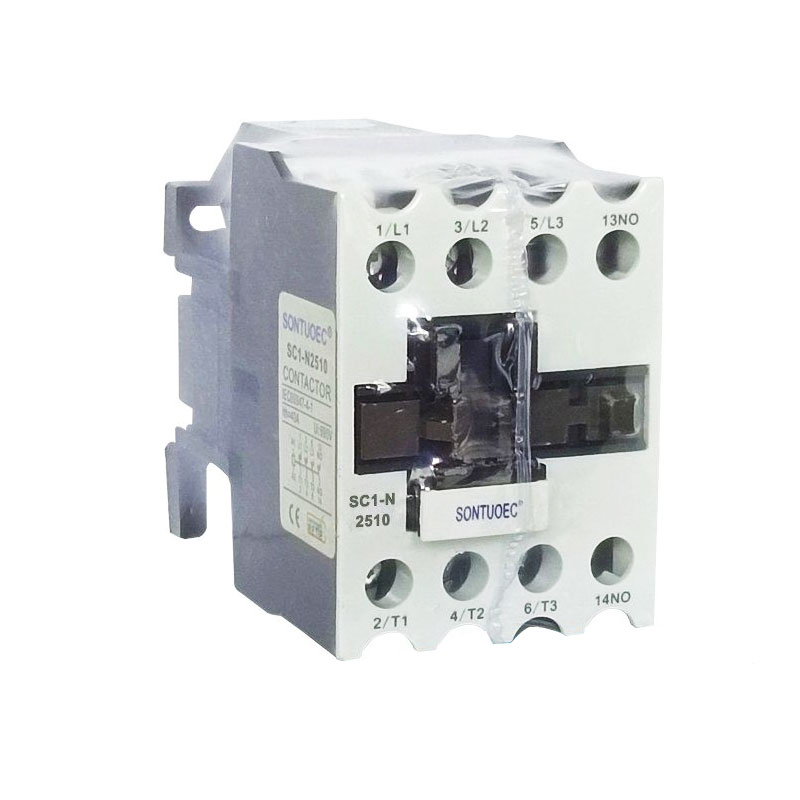

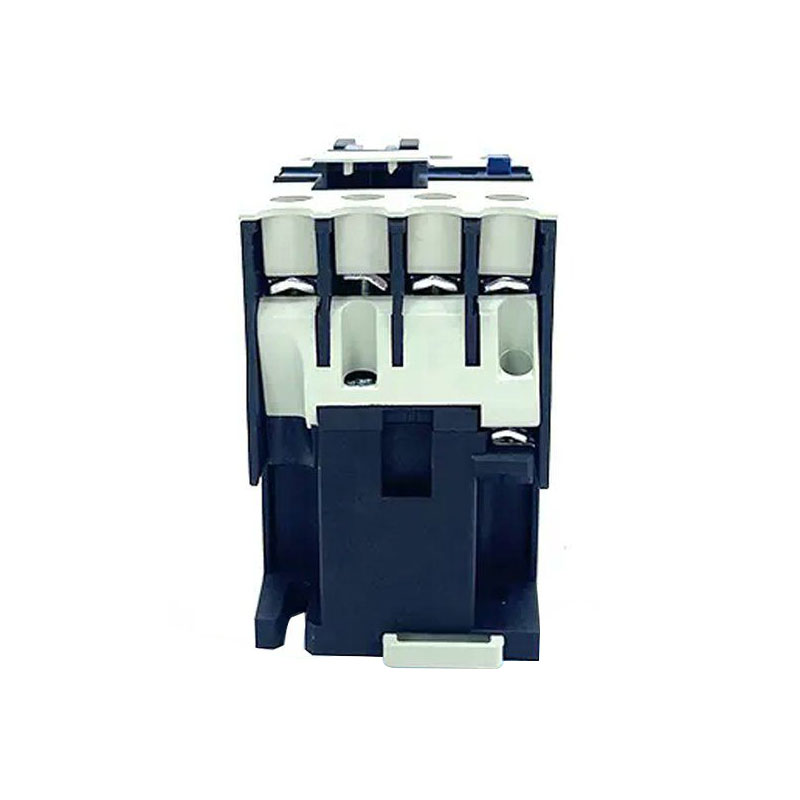

3 Pole AC Contactor

3 Pole AC Contactor is an AC contactor ine matatu akazvimirira anobatika (kana mapango), imwe neimwe inodzora chimwe chikamu chetatu-chikamu simba system. Basa rayo guru ndere kudzora kure kutanga, kumisa uye kudzoreredza matatu-phase motors kana mamwe matatu-chikamu mitoro. Nekudzora iyo yekubatidza nekubvisa kweava matatu anobatika, inogona kuona kubatana uye kubviswa kweyechitatu-chikamu chedunhu, nekudaro ichidzora chimiro chekushanda chemagetsi.

Send Inquiry

Product Description

Model	Kugona kwe2 phase sqrlel-								Yakatemerwa kudziyisa ikozvino 1th(A)
	Rated simba (KW)				Yakatemerwa kushanda ikozvino (A)
	220V-240v	380-440v	550v	660v	220-240V	380V-440V	550v	660v
SC1-N10	2.5	4.0	4.0	4.0	11	9	7	5	20
SC1-N11	3.5	5.5	5.5	5.5	13	12	9	7	20
SC1-N12	3.5	5.5	5.5	5.5	13	12	9	7	20
SC1-N20	5.5	11	11	7.5	22	22	17	9	32
SC1-N25	8.5	14	14	14	30	30	12	12	40
SC1-N35	12	20	20	20	40	40	17	17	40

Chimiro uye nheyo yekushanda

Chimiro:

Electromagnetic system: inosanganisira zvinhu zvakaita semakoiri, macores, nezvimwe, ayo anoshandiswa kugadzira magineti flux kutyaira kuvhura uye kuvhara kweiyo yekubata system.

Bata system: inosanganisira huru kuonana uye yekubatsira kuonana. Iyo huru yekubata inoshandiswa kutakura yakakwira ikozvino, uye yekubatsira yekubata inoshandiswa kuona kutapurirana uye mhinduro yekudzora masaini.

Arc yekudzimisa mudziyo: Inoshandiswa kudzima arc inogadzirwa kana iyo yekubata yakadzimwa kuchengetedza kubata kubva mukukuvadzwa.

Shell: inoshandiswa kuchengetedza zvinhu zvemukati kubva kune yekunze nharaunda.

Working Principle:

Kana iyo coil yapihwa simba, iyo musimboti wesimbi inoburitsa magineti uye inokwezva iyo yekubata system kuvhara, zvichiita kuti nhanho-nhanho dzivhurwe.

Kana iyo coil yabviswa simba, iyo musimboti wesimbi inorasikirwa nemagineti uye iyo yekubatanidza system inopatsanurwa pasi pechiito chechirimo kuti ibvise dunhu rematatu.

Chechitatu, kushandiswa uye kusarudzwa

Applications:

3 Pole AC Contactor inoshandiswa zvakanyanya mumaindasitiri otomatiki, simba system uye kuvaka otomatiki.

Inogona kushandiswa kudzora mashandiro akadai sekutanga, kumisa uye kudzoreredza matatu-chikamu mota.

Inogona zvakare kushandiswa kuona kuremote control uye kuchengetedza kwesimba system.

Sarudzo:

Paunenge uchisarudza 3 Pole AC Contactor, zvinhu zvakaita seyakayerwa voltage, yakayerwa ikozvino uye mutoro wemhando yemagetsi system inofanirwa kutariswa.

Chiyero chemazuva ano chinofanira kunge chakakura kudarika kana kuenzana nepamusoro pekushanda ikozvino kwemutoro.

Iyo voltage rating inofanirwa kuchinjirwa kune voltage level yemagetsi system.
